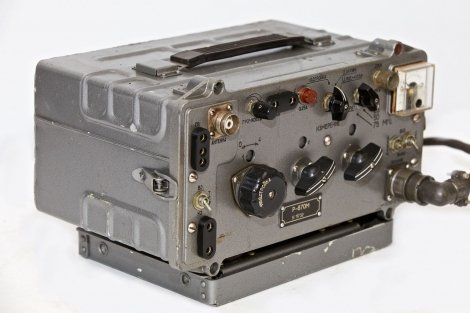

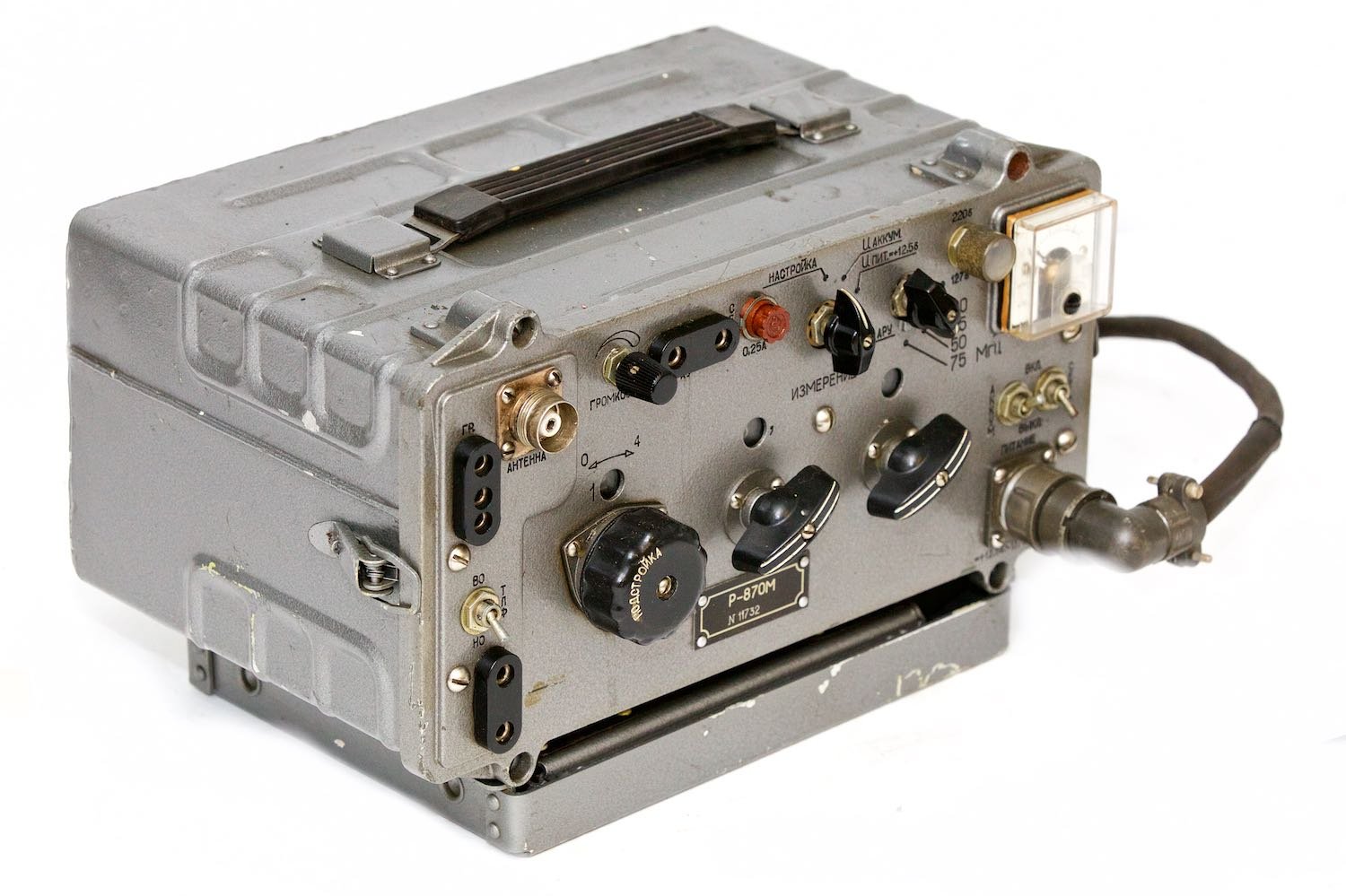

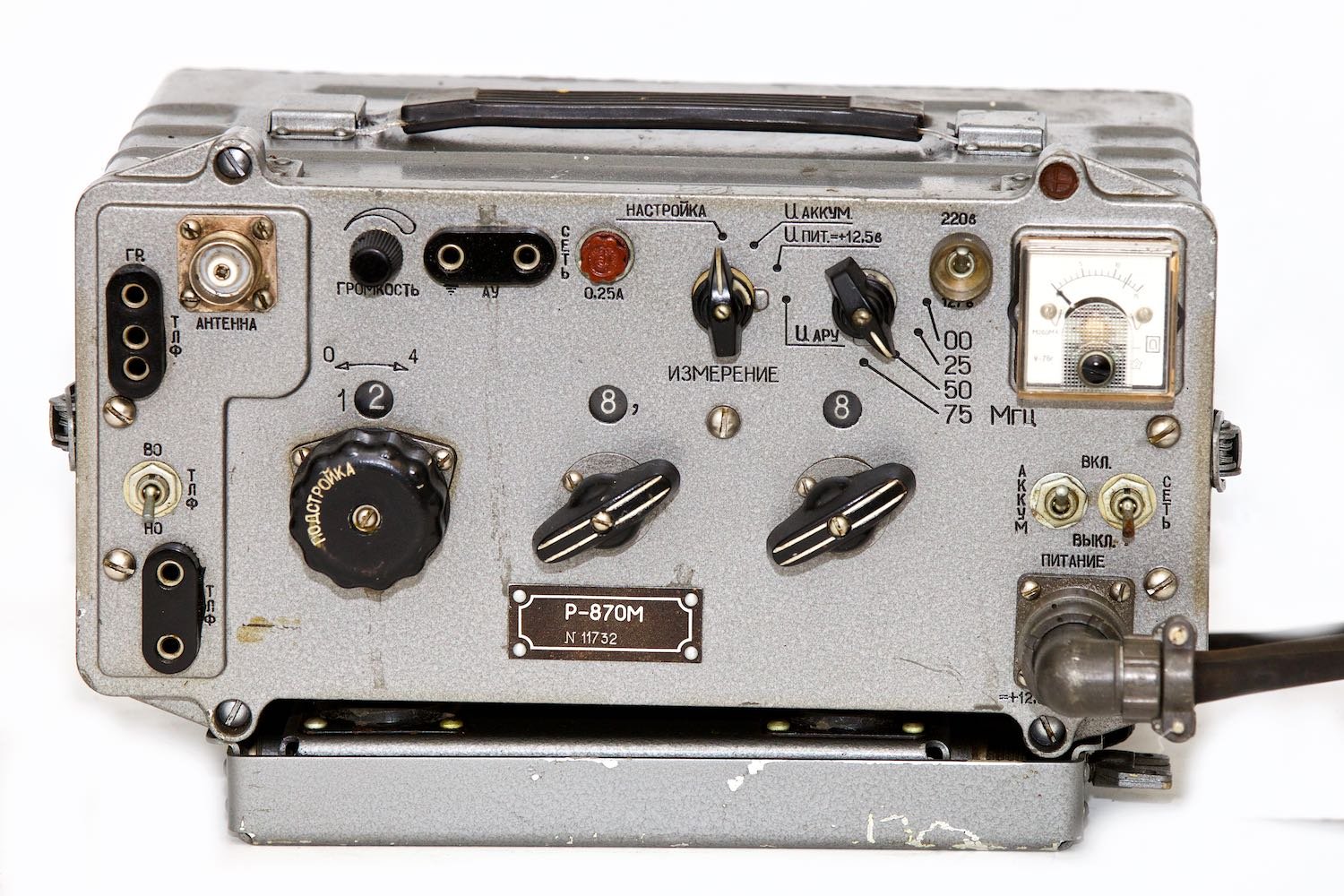

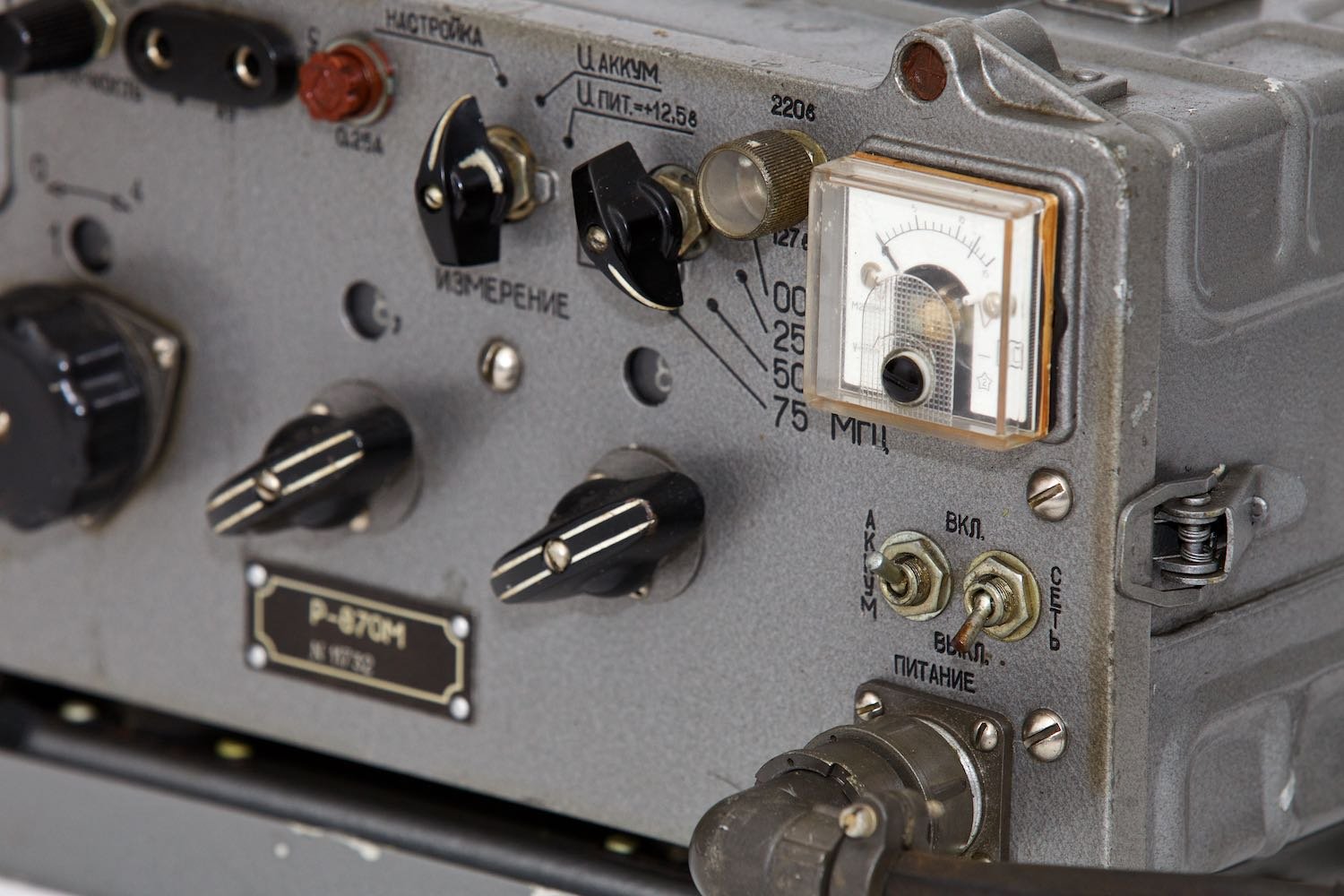

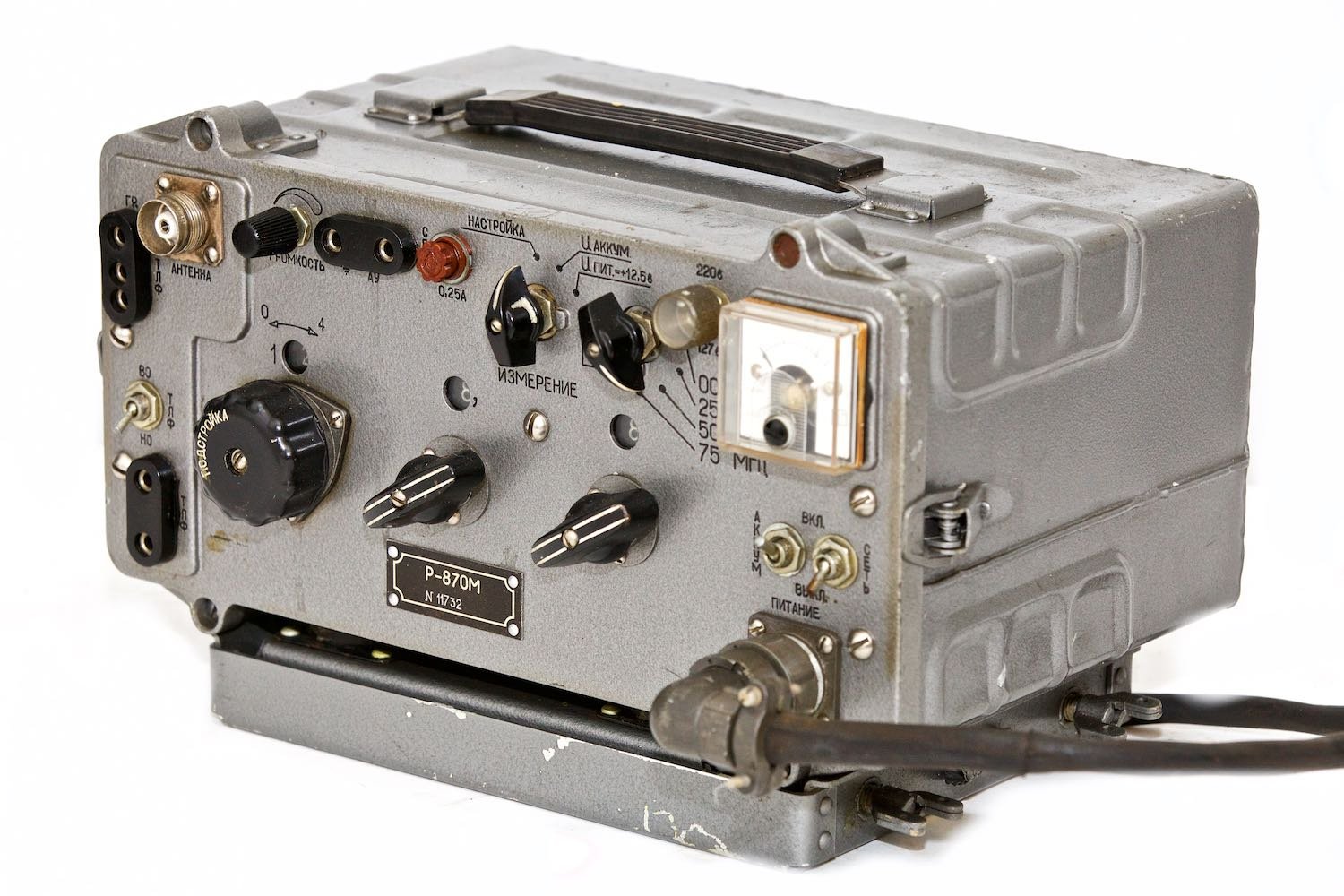

The receiver was designed to keep SWL on the air - ground. Used at a level lower tactical levels, mainly as an infantry and artillery. Also seen as an accessory carts for Command and Joint Staff.
The receiver fully transistorized replaced the earlier model R-870. Structurally and systemically very similar to radio R-809M2. He climbed the equipment of the Polish Army in the mid 70s.
| Frequency range | 100 - 149,975 MHz |
| Modulation | amplitude modulation (AM) |
| Frequency change | step tuning at 25 kHz |
| Work | without seeking and tuning ensured by quartz frequency synthesis system |
| Intermediate frequency | 15,8 - 15,875 MHz (variable) and 1,6 MHz |
| Sensitivity | no worse than 6 μV |
| Power | network 127 or 220V / 50Hz; of the 110 V / 400 Hz; with the included Ni - Cd 12 V / 20 Ah or external power supply |
| Power consumption | 0,5 A from 12V battery |
| Weight | approx. 6 kg |
| Temperature range | -30 to +50 °C |
| Staff | one soldier |
| Antennas | band to work on the move; disc-cone on a folding mast to work at standstill |
