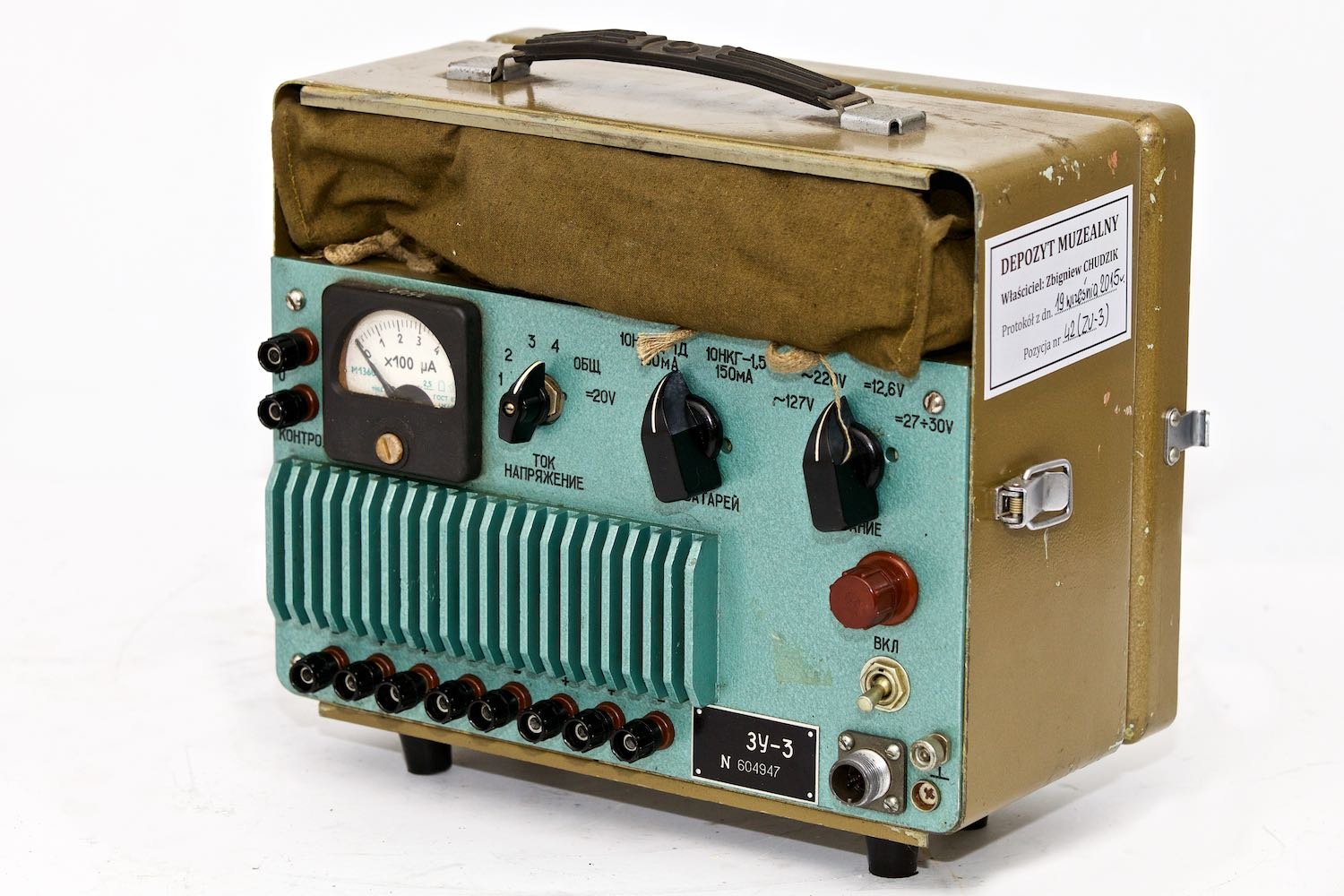

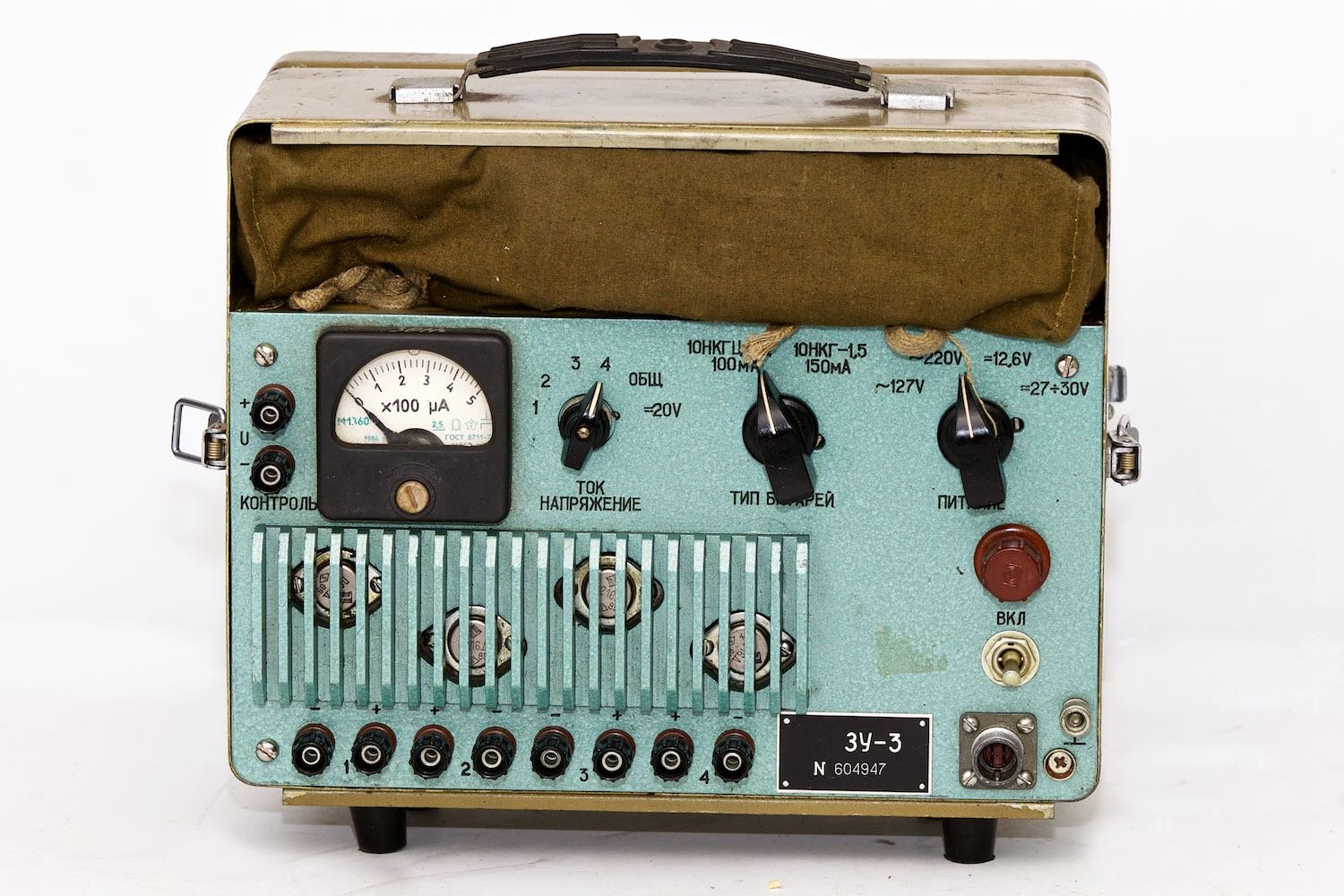

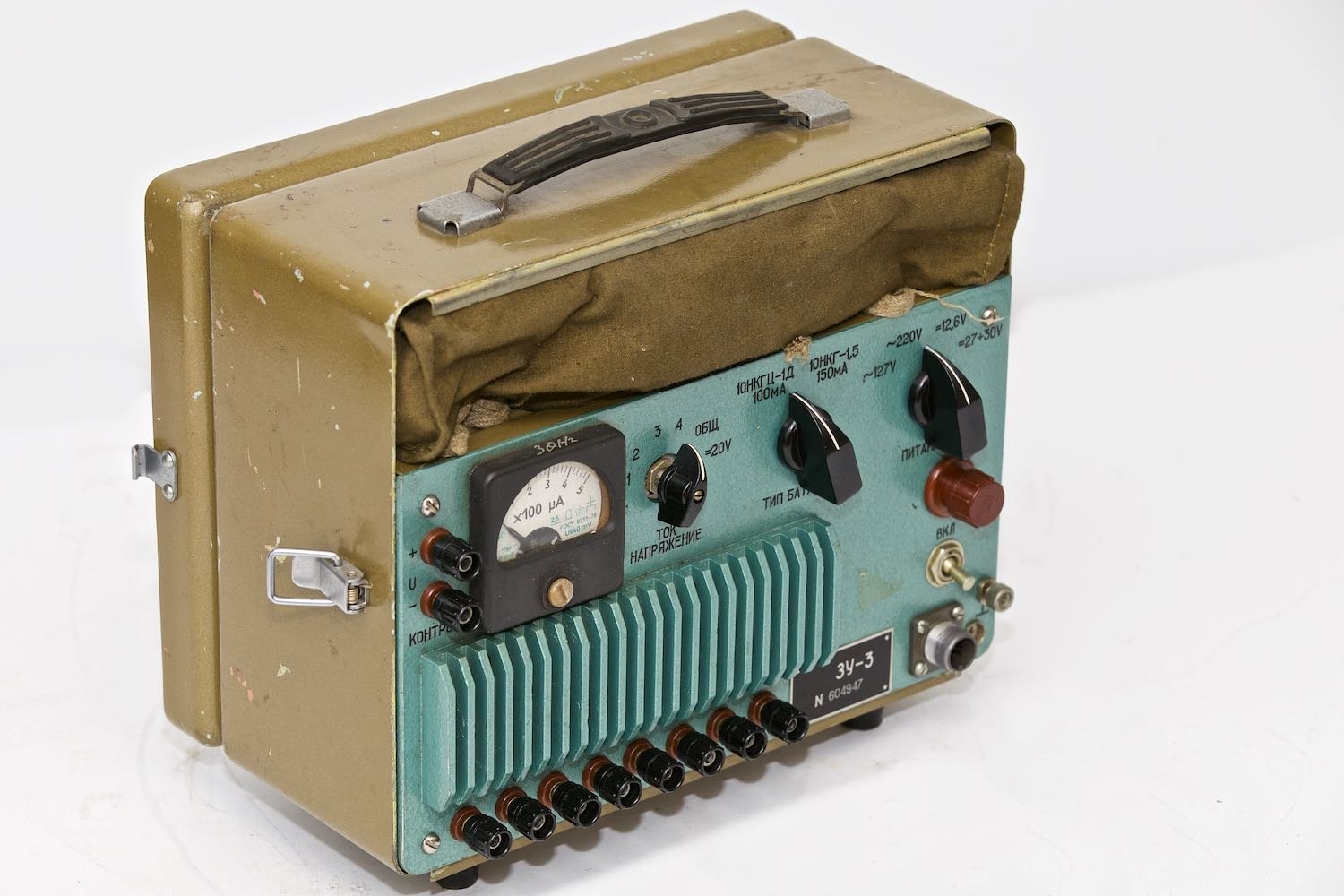

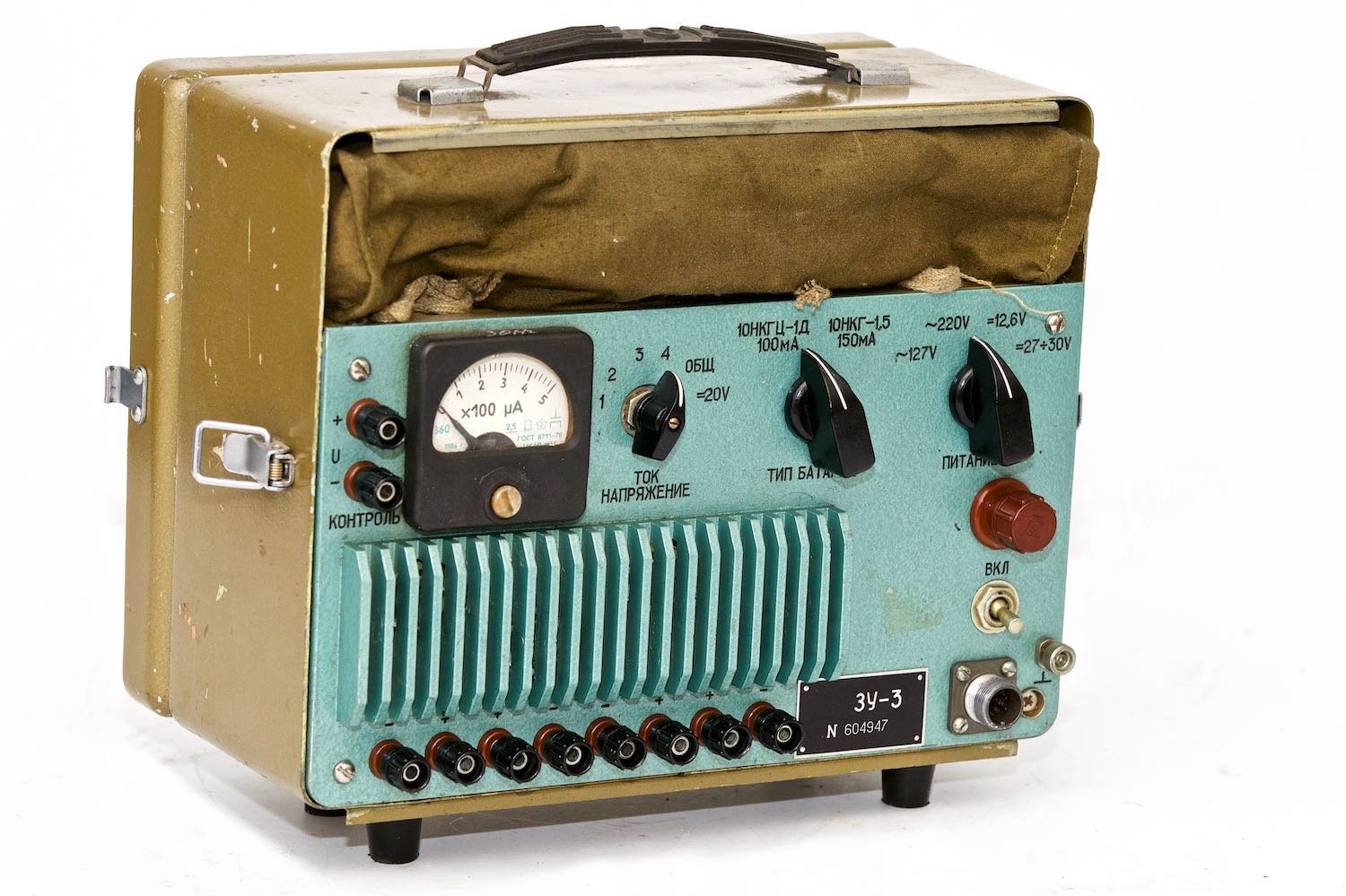

ZU-3

Charging device

The device is used for charging nickel-cadmium type 10NKGC-1D, 10CNK-0.45 and 10NKG-1.5 are the source of power of the Soviet portable radios R-148, R-158, R-392 and related industries.

TECHNICAL DATA

Power with the alternating current network 127 or 230, and the on-board vehicle electrical system voltage of 12 or 24 V
Charging 1 to 4 batteries stabilized current 100mA or 150mA
Control Ability to control the efficiency of each of the charging circuits
Measurement of voltages up to 20 V
Weight approx. 7,5 kg
