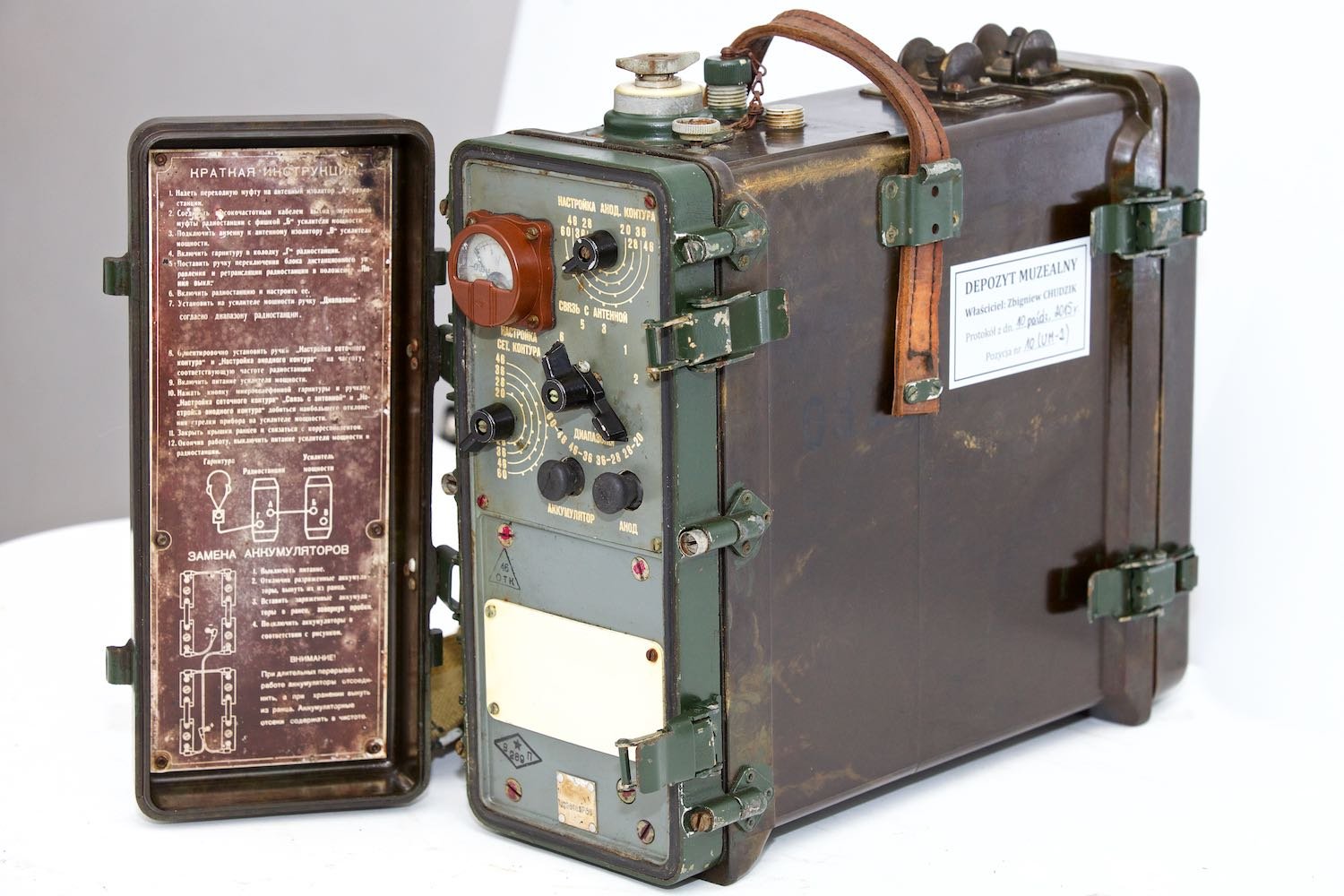

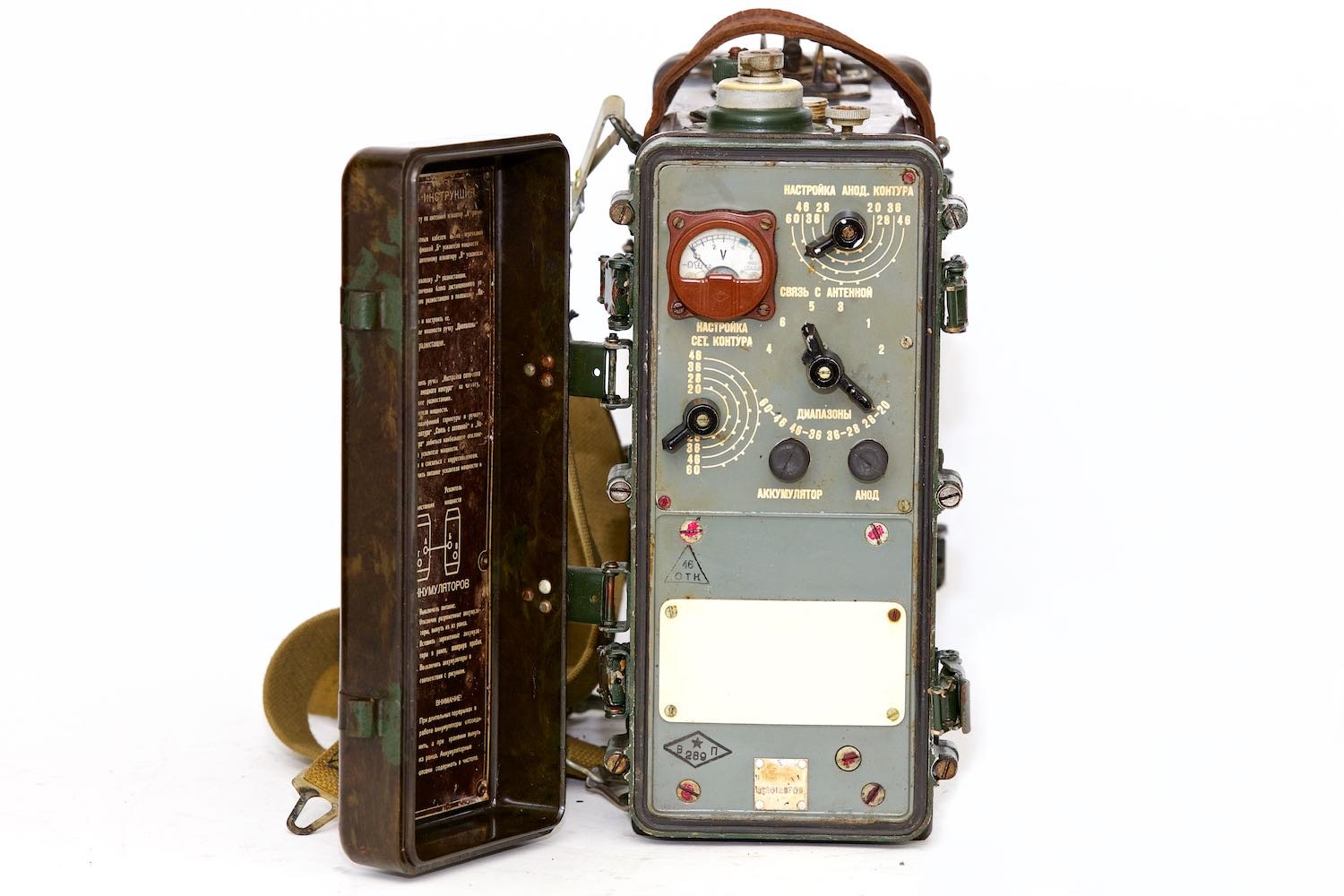

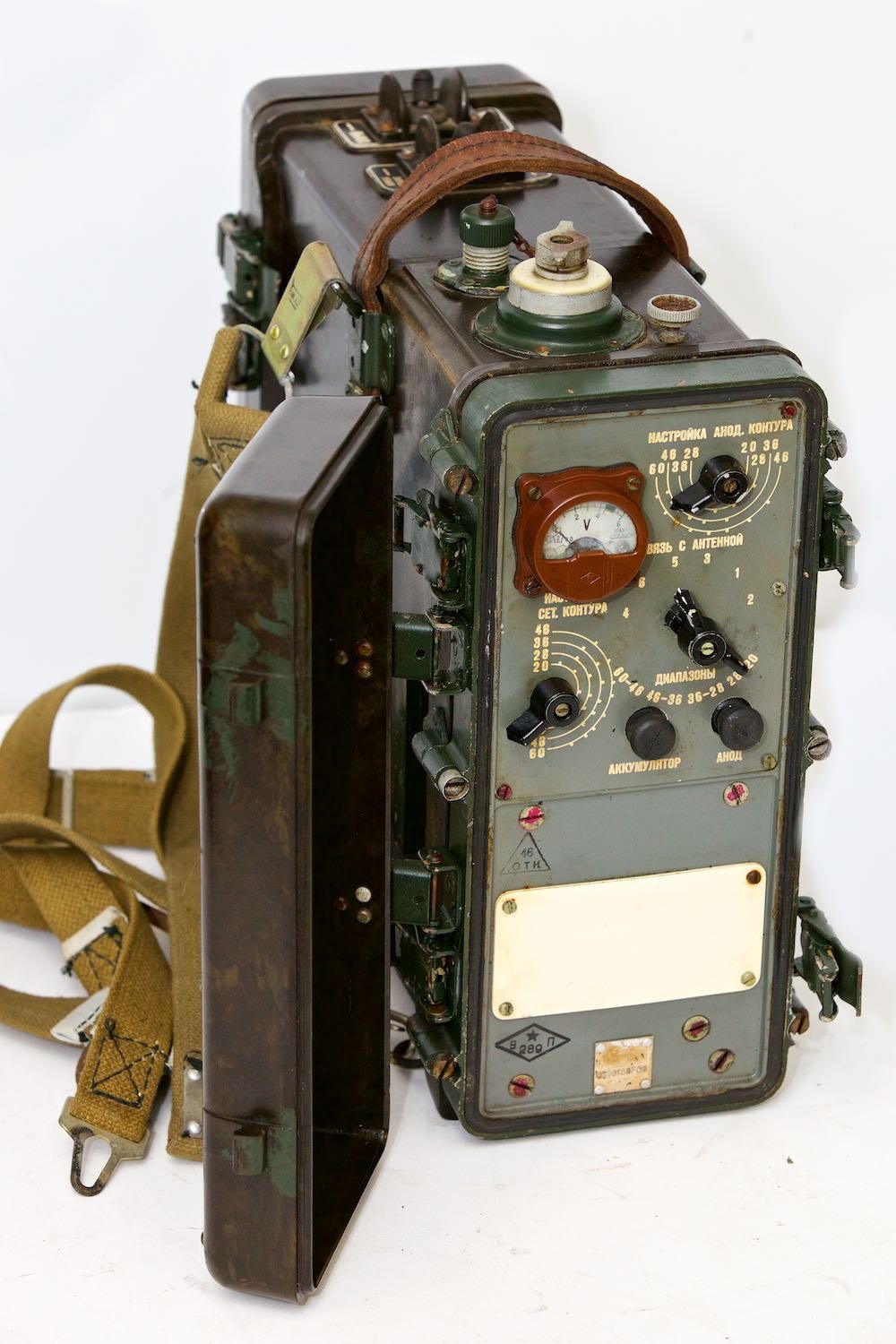

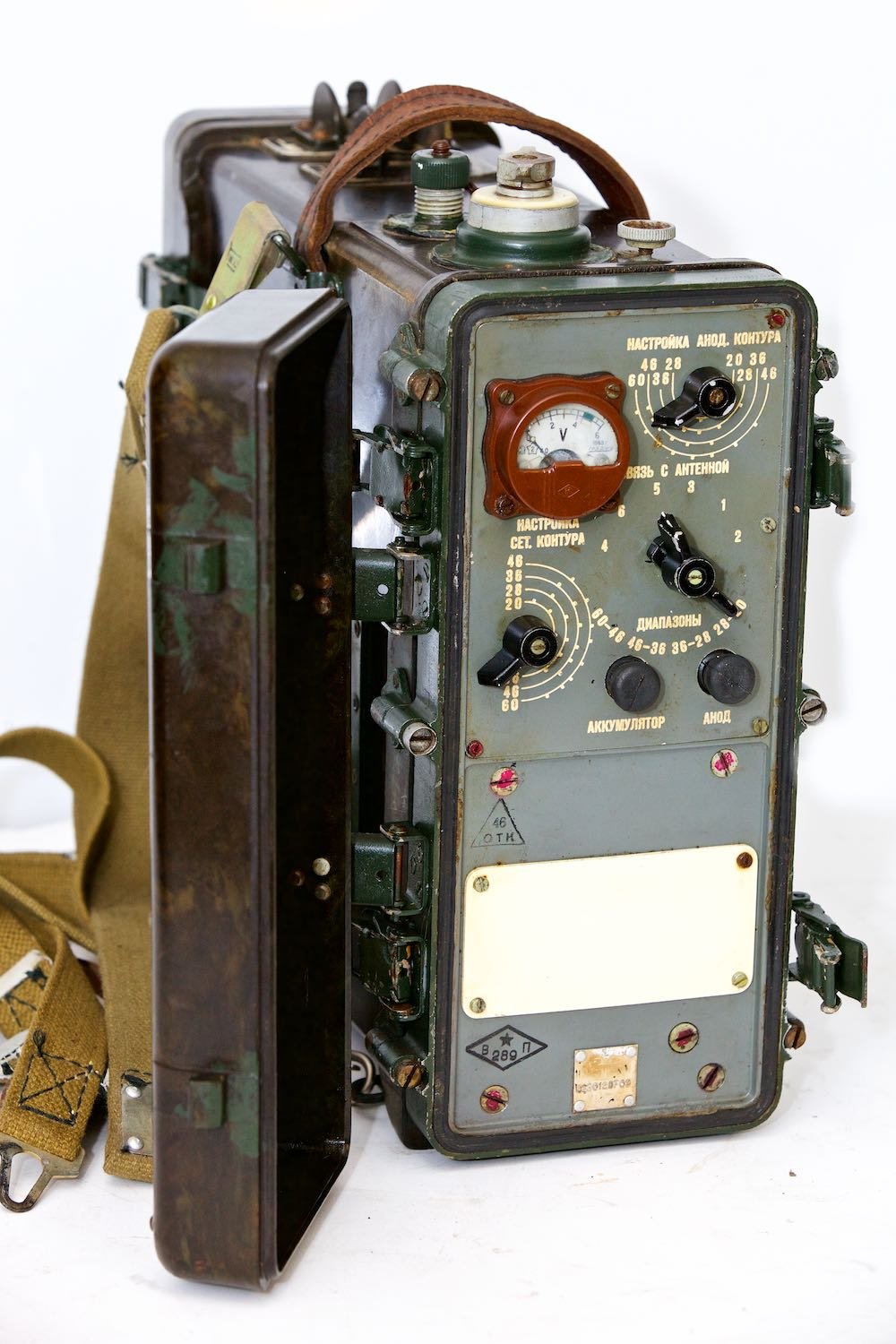

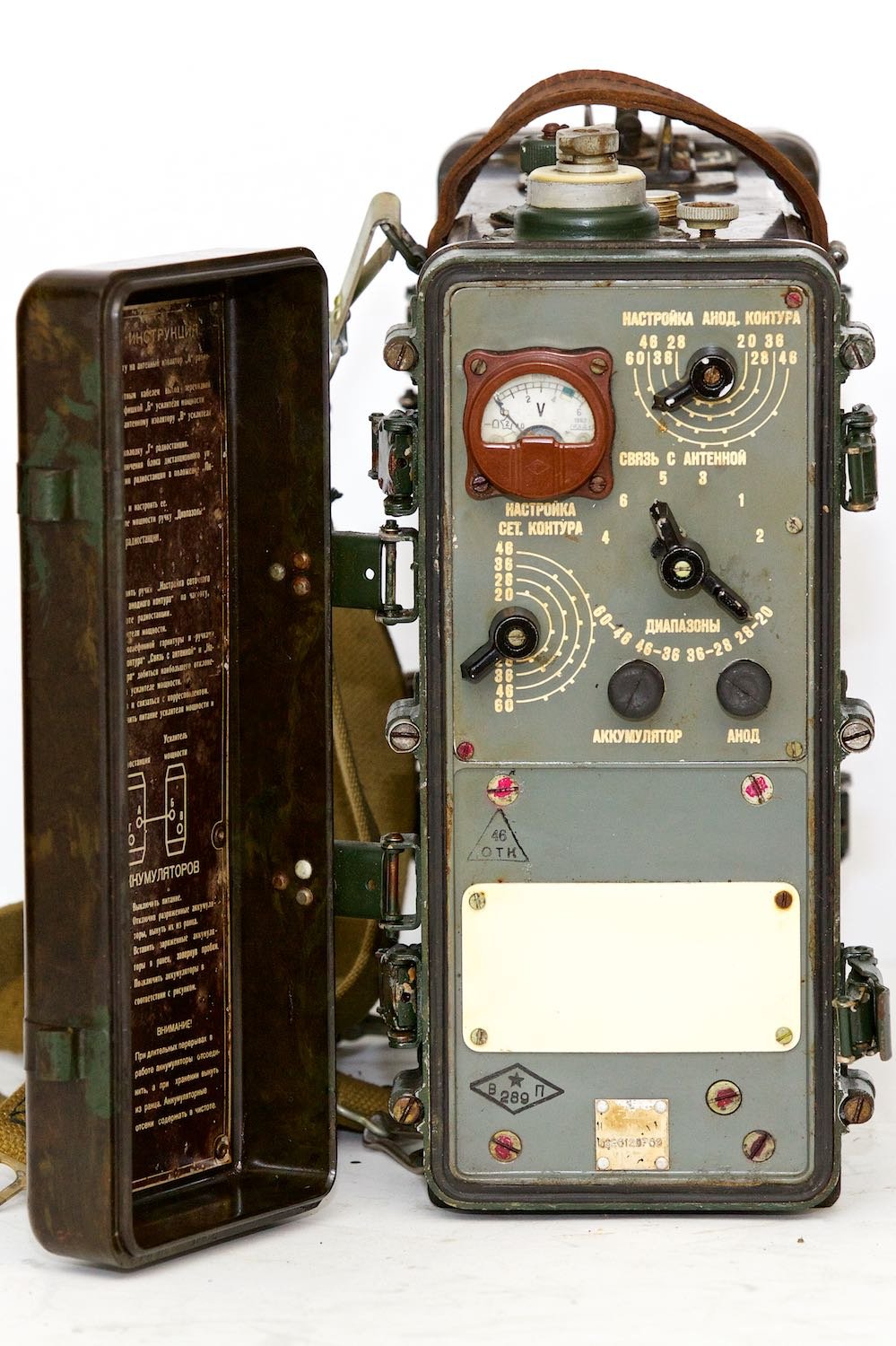

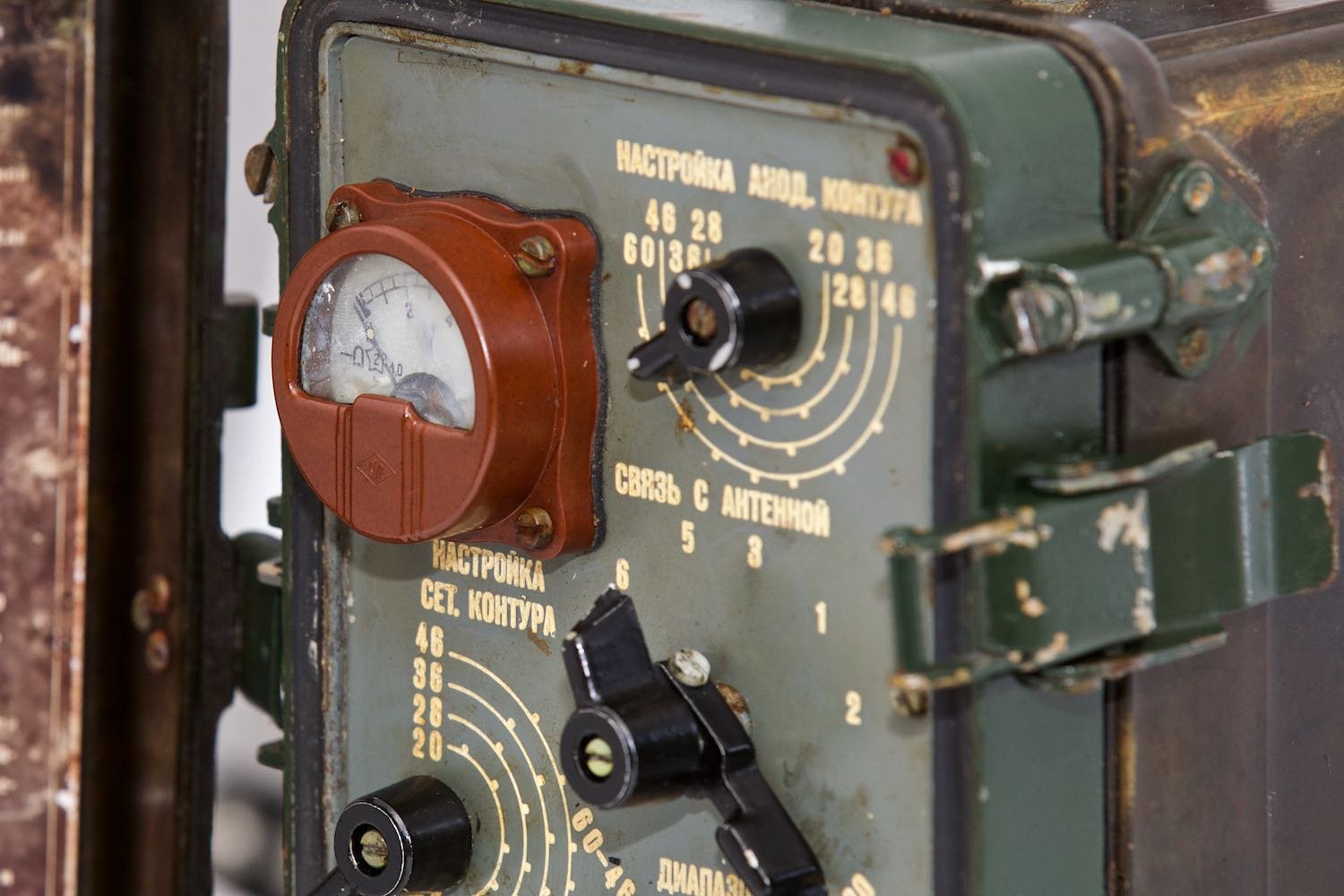

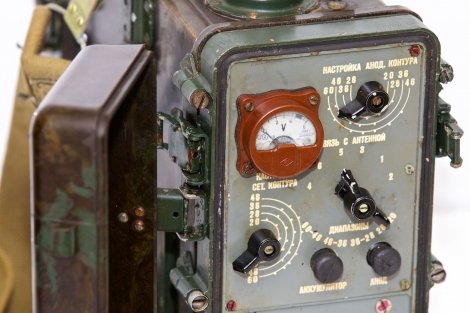

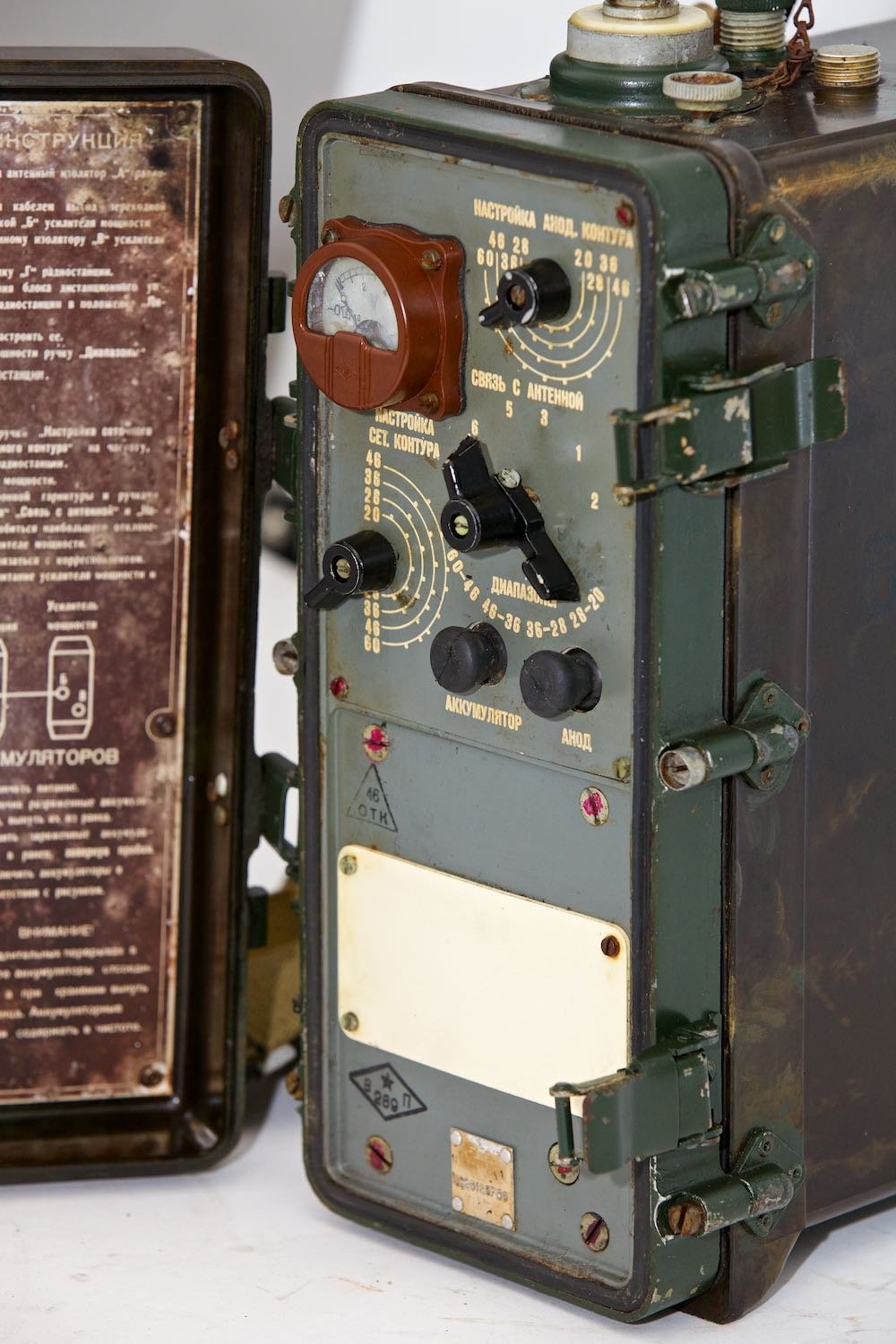

UM-2

Power Amplifier

The amplifier is designed to amplify the signal transmitters radio R-105M, R-108M, R-109m, R-107 and related (and thus increasing the range of about 2-fold relative to the work radio without enhancer), both in stationary conditions field as well as in movement when mounted on a vehicle.

In relation to the amplifier UM-1 is a more modern, smaller and lighter, has a broader frequency range, but also with lower output.

TECHNICAL DATA

Frequency range 20 - 61 MHz
Output power 10 W
Power external voltage from 8.8 to 10,6V or installed within 8 pieces rechargeable Ni-Cd 1.2 V / 20 Ah
Power consumption approx. 5,5 A
Lamp 6P23P
Weight approx. 15 kg (with fitted batteries)
Temperature range -50 to +50 °C
