R-148

VHF Radiostation

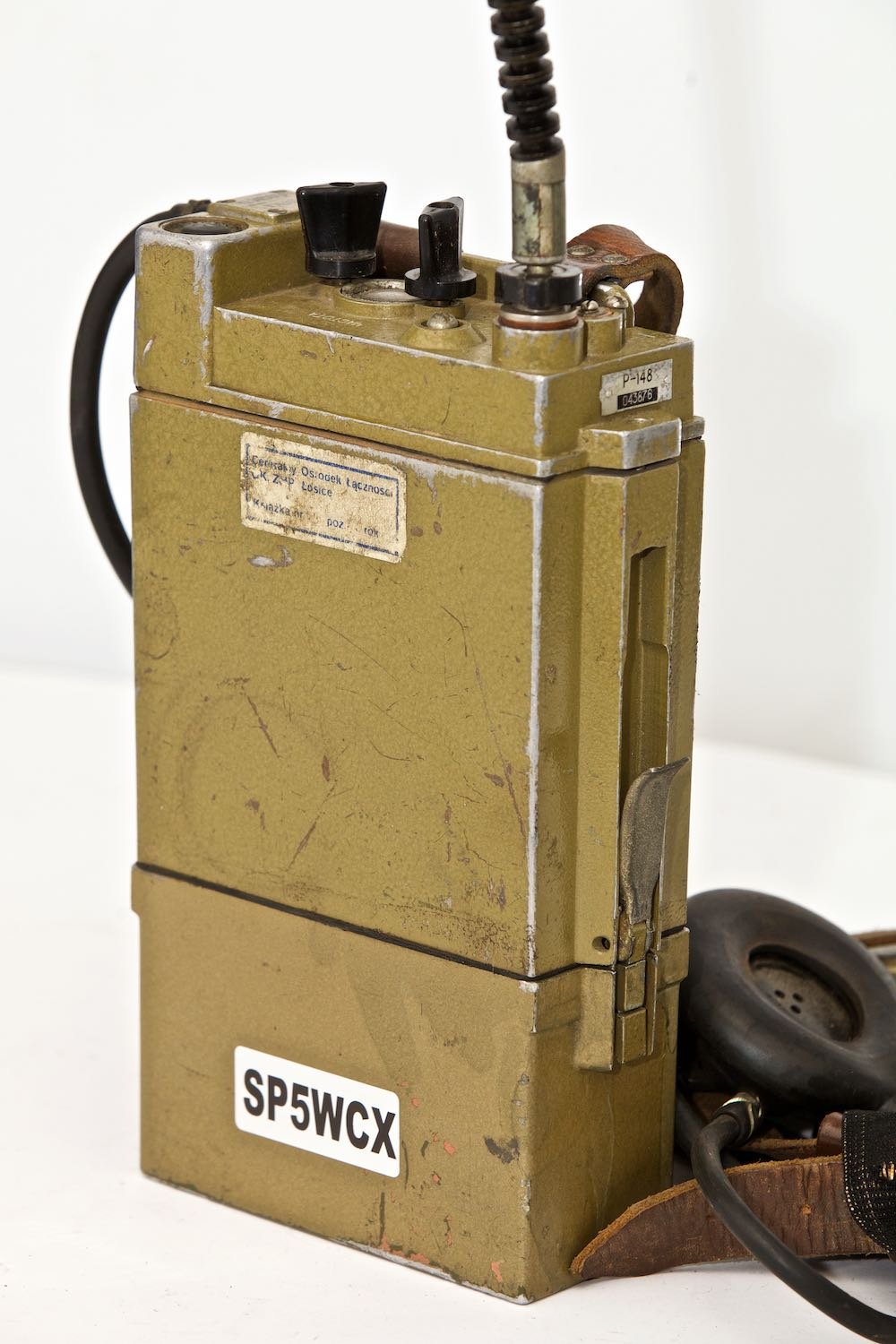

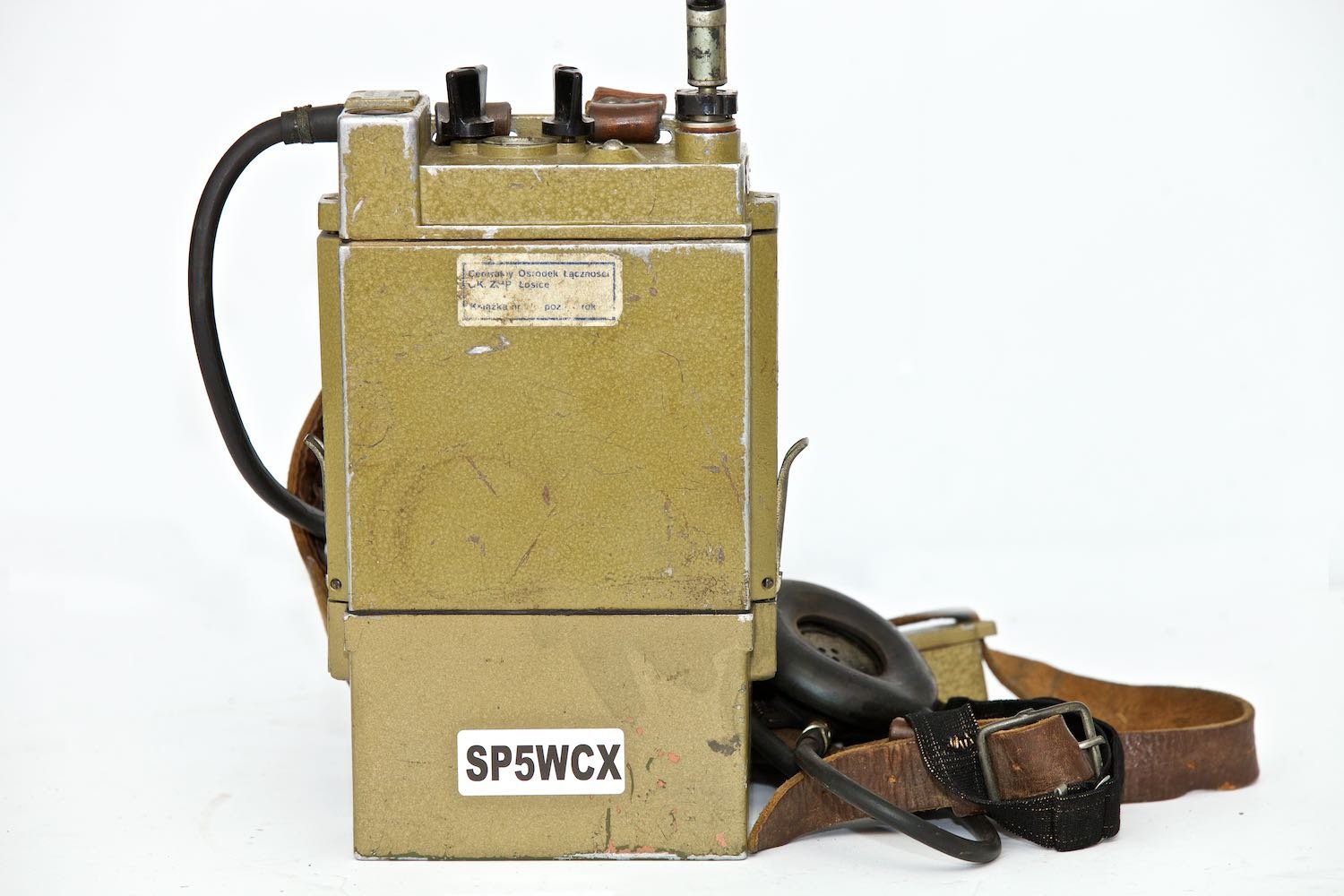

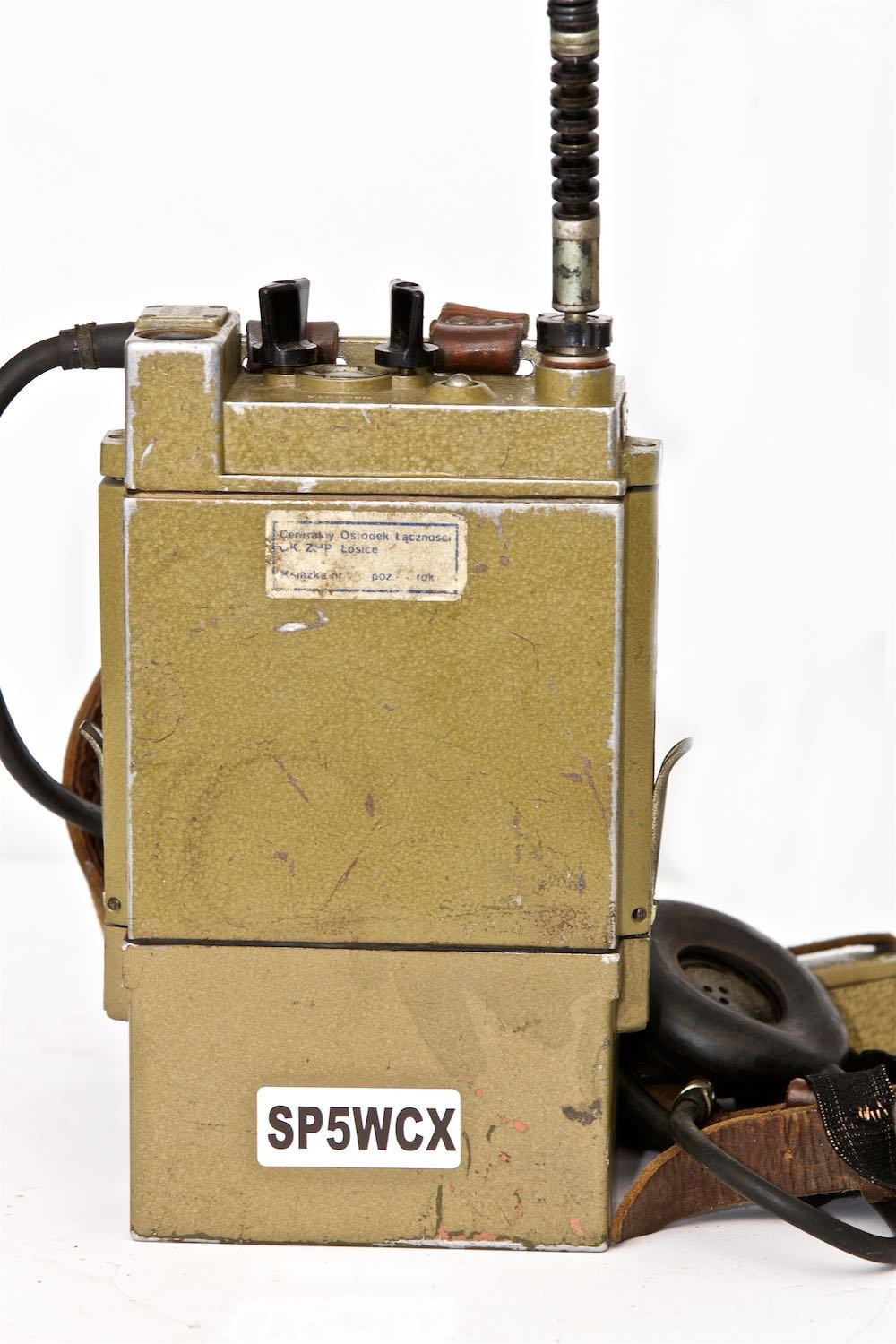

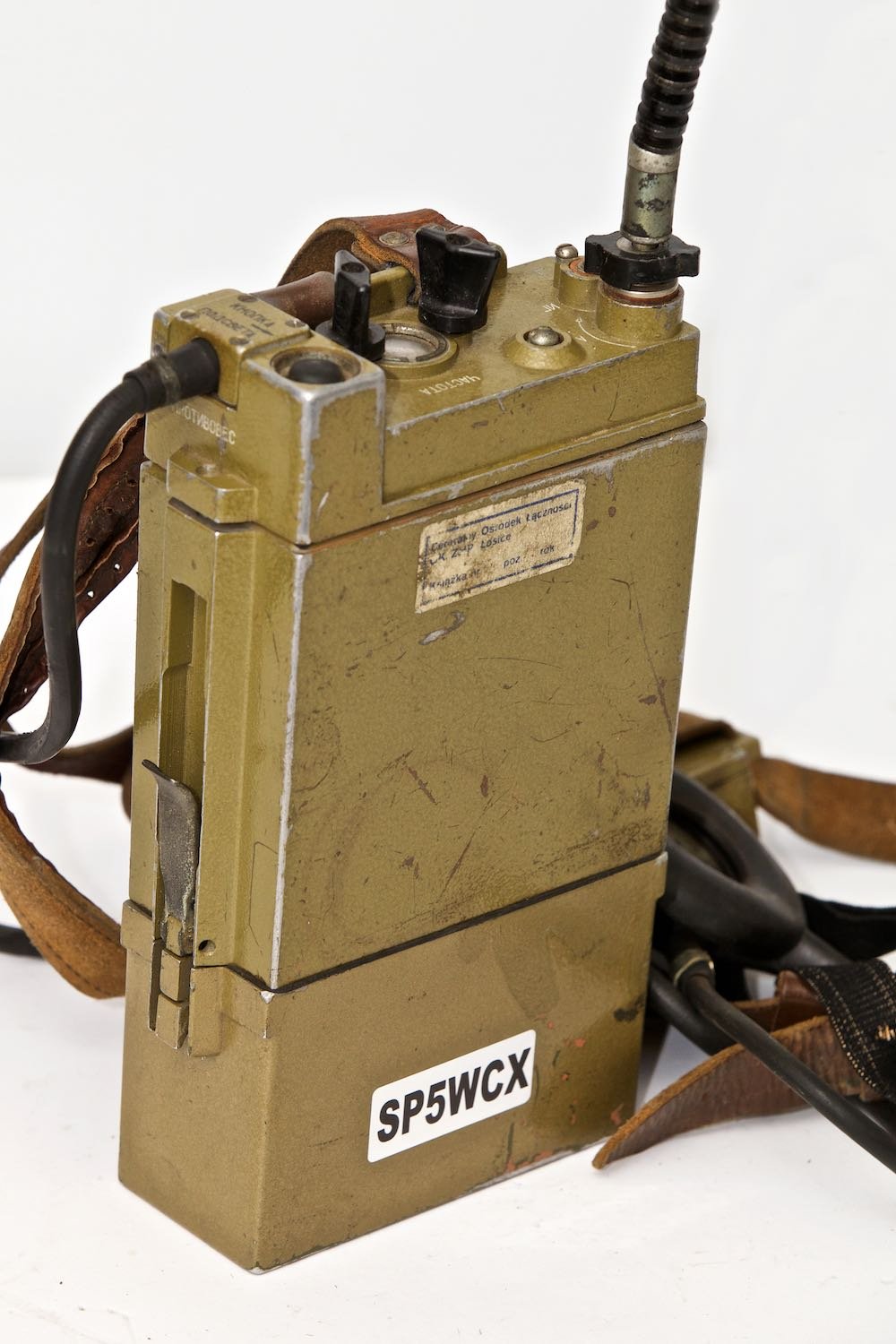

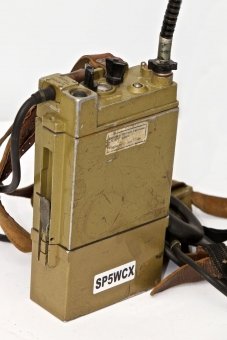

Soviet radio station, built using discrete semiconductor and hybrid microassemblies. It turned out to be distressed and serious in repair, mainly due to the applied microassemblies hybrid, produced exclusively for the radio, having no substitutes in other Comecon countries.

The furnishings of the Polish Army came in a few copies in the 80s, mainly as an outdoor mobile command posts. A set of straps allow its attachment on the back or on chest of operator be worn slung over his shoulder.

TECHNICAL DATA

Frequency range 37 - 51,950 MHz
Modulation frequency modulation (FM)
Frequency change switches on the front panel increments of 50 kHz step
Forming frequency quartz frequency synthesis system
Intermediate frequency 11 MHz
Output power 1 W
Sensitivity no worse than 0,8 μV
Frequency deviation 5 - 7 kHz
Noise blockade sensitivity threshold 1,5 - 3 μV
Power gas-tight NiCd battery 12V / 1 Ah
Work time approx. 10 hours with a time of receipt to transmit 5:1
(on one battery)
Weight approx. 3,5 kg
Temperature range -50 to +50 °C
