R-109dM

VHF Radiostation

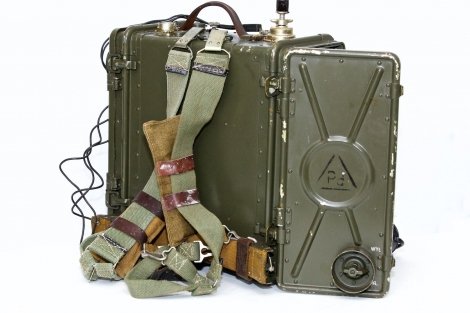

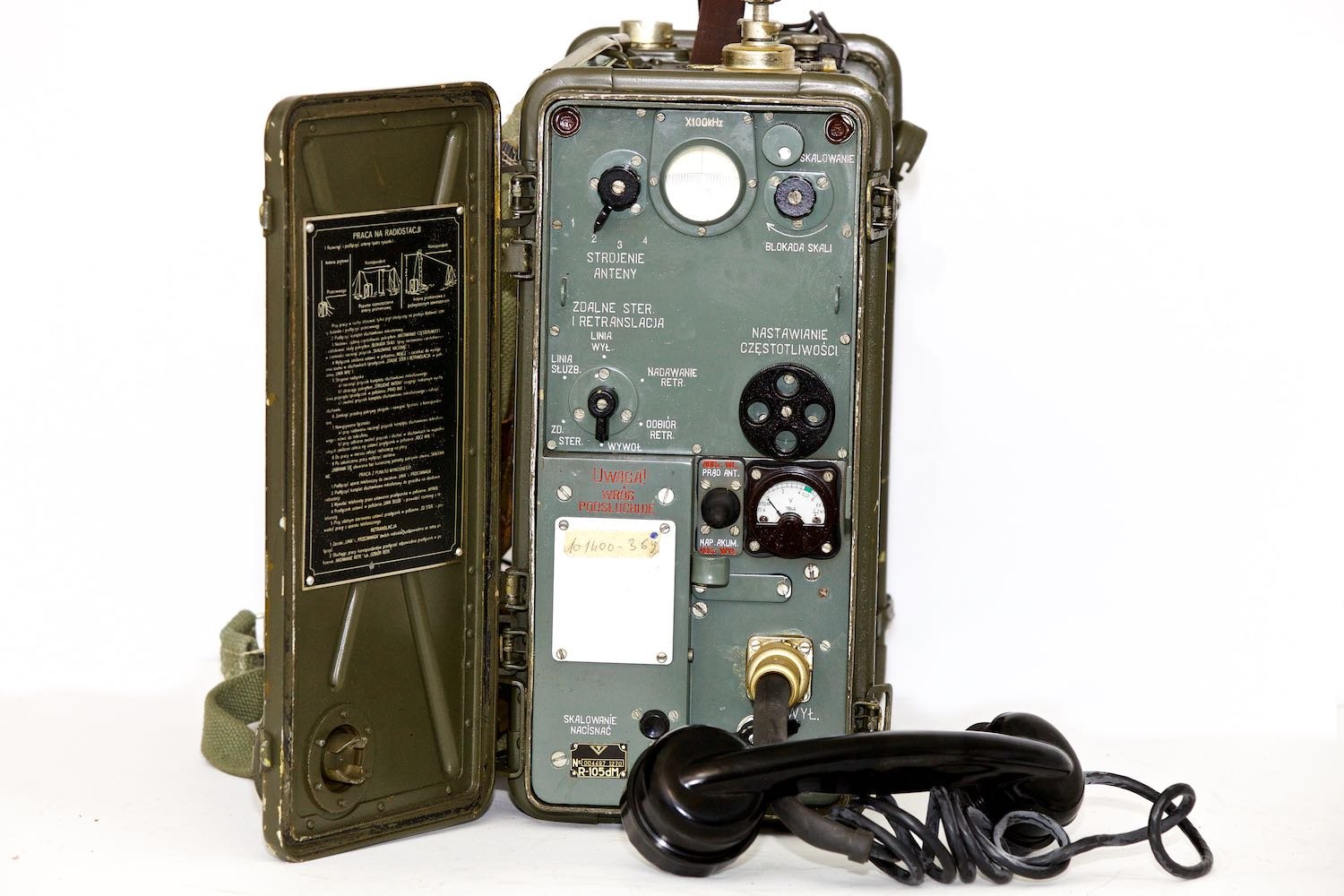

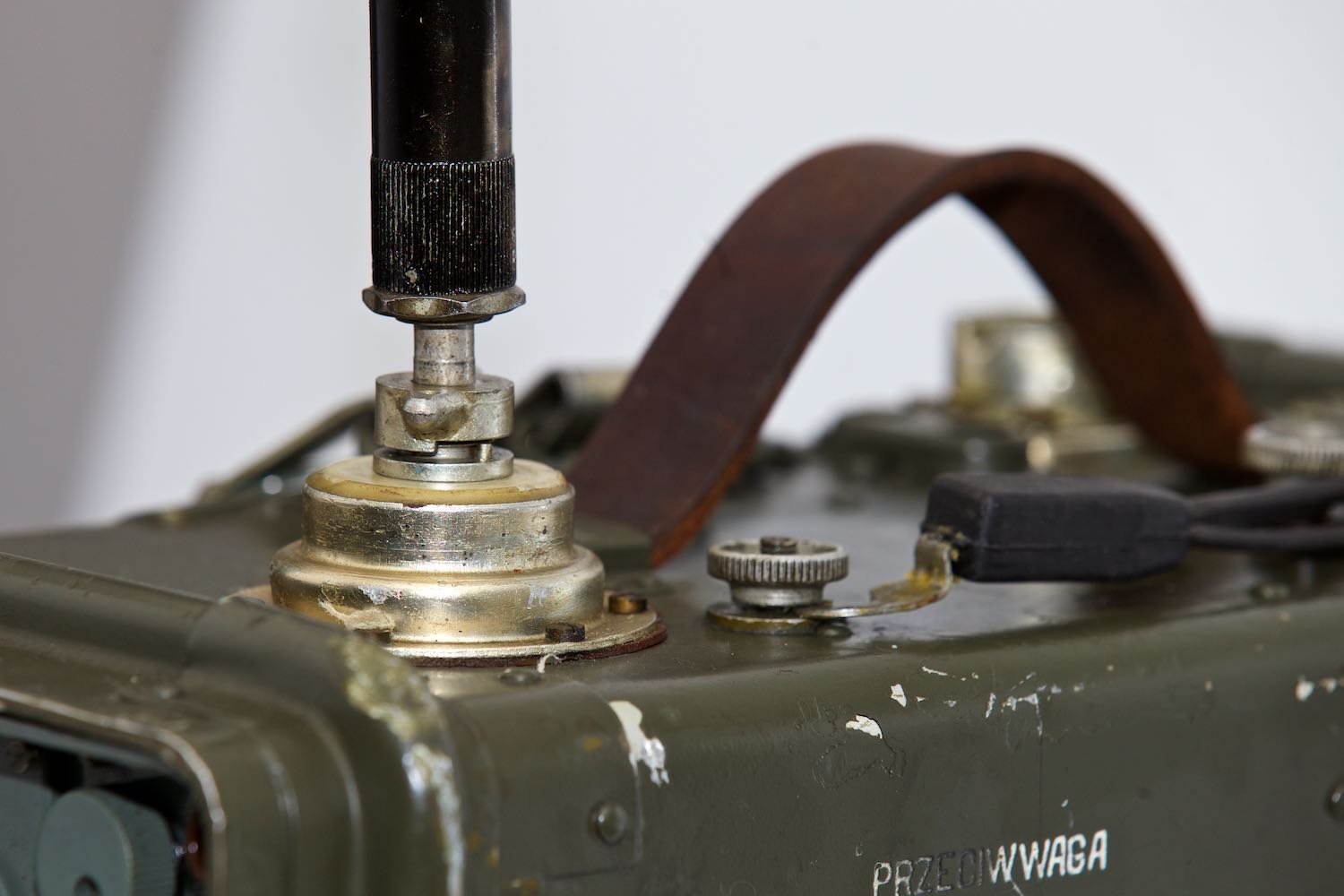

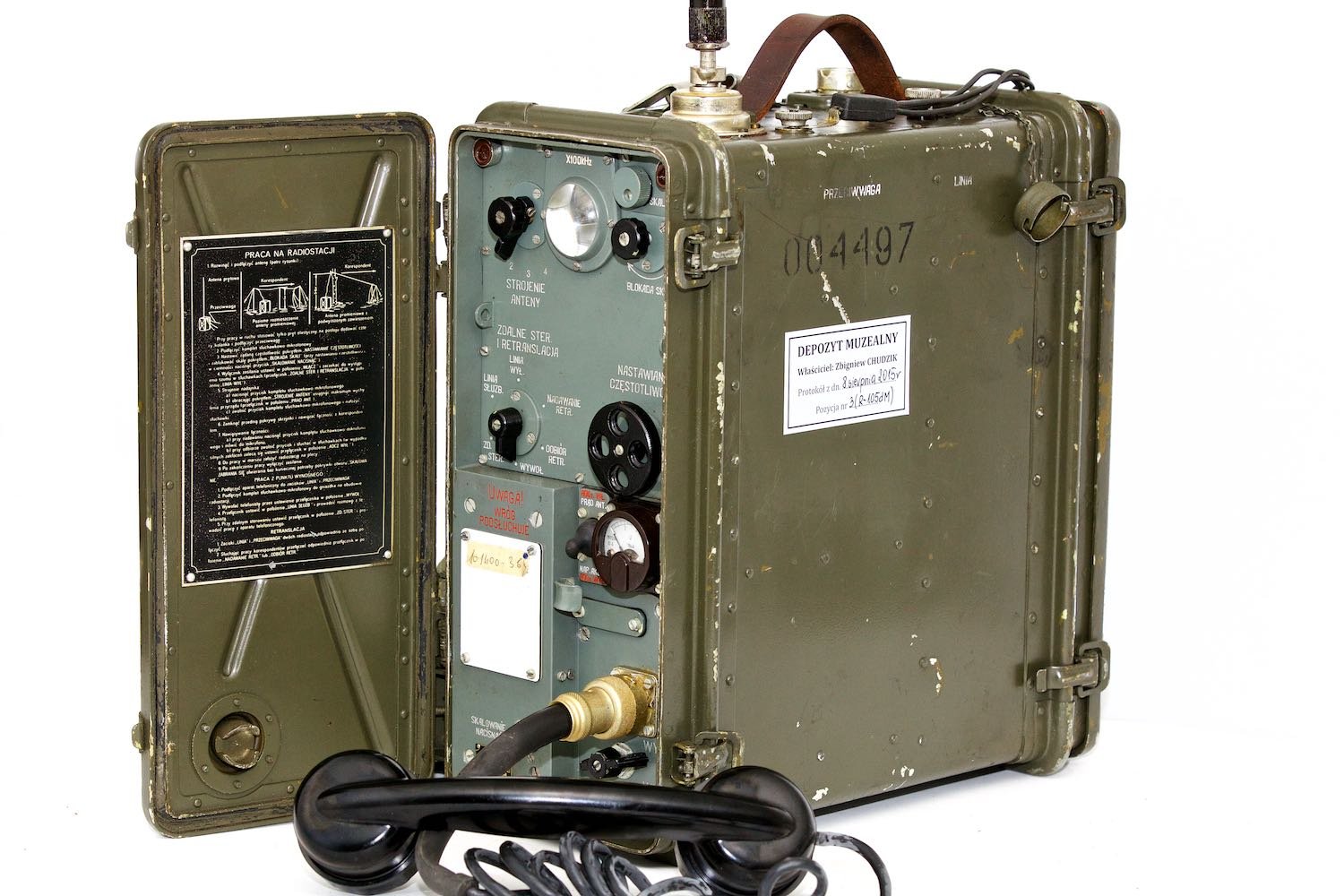

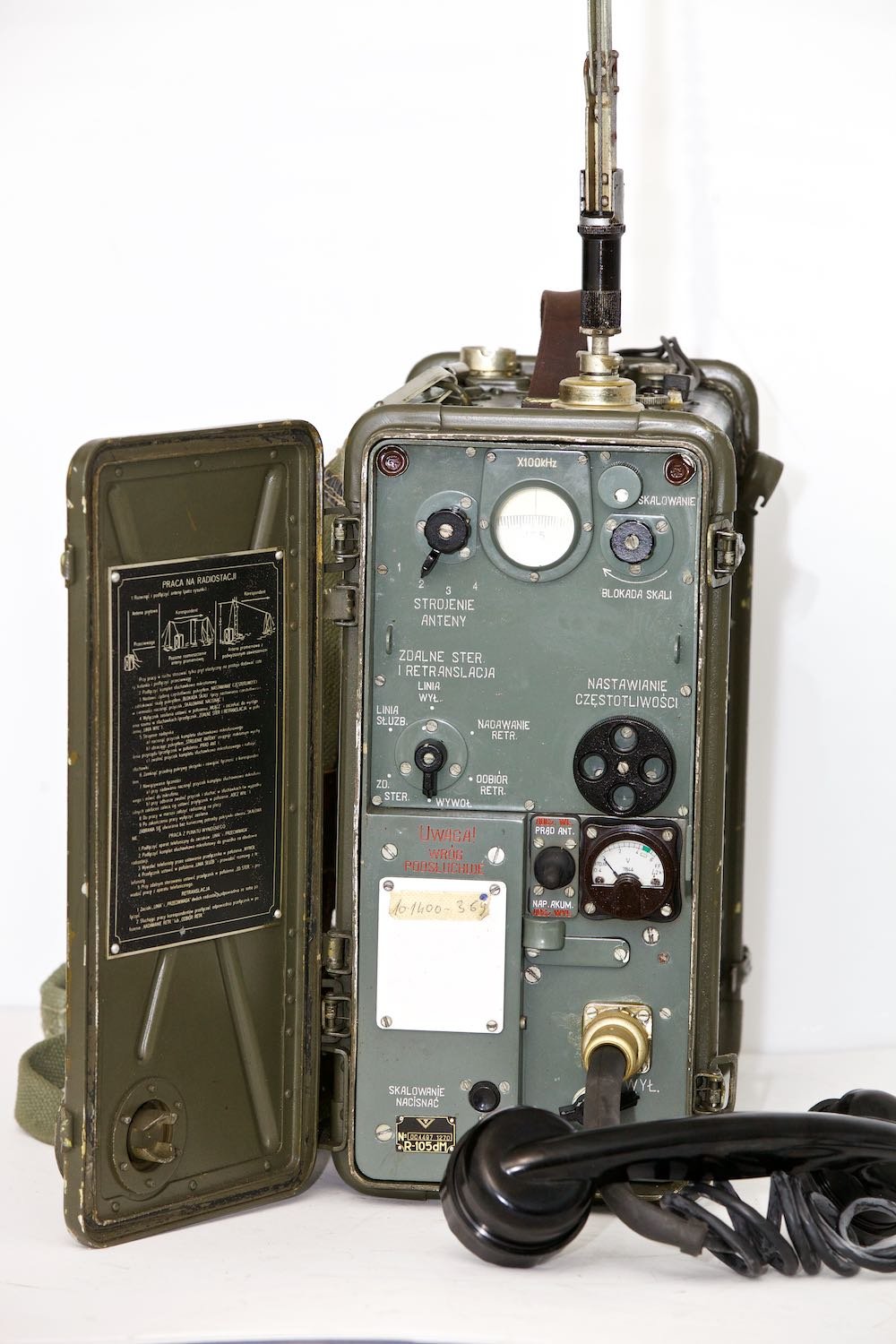

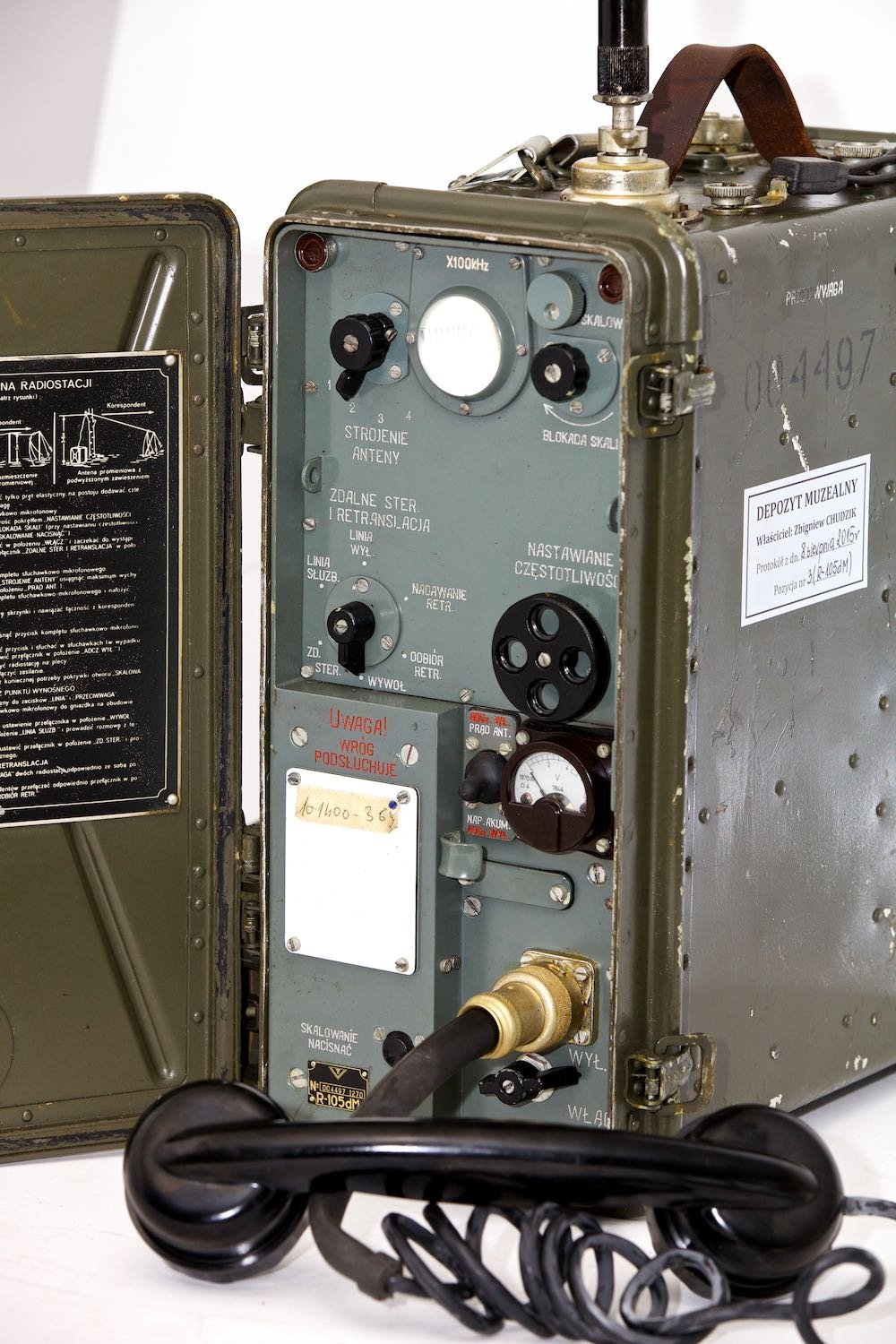

They upgraded successors radio stations R-109d. They have entered the equipment of the Polish Army in the late 60s. R-109dM was intended for mechanized forces.

TECHNICAL DATA

Frequency range 21,5 - 28,5 MHz
Modulation frequency modulation (FM)

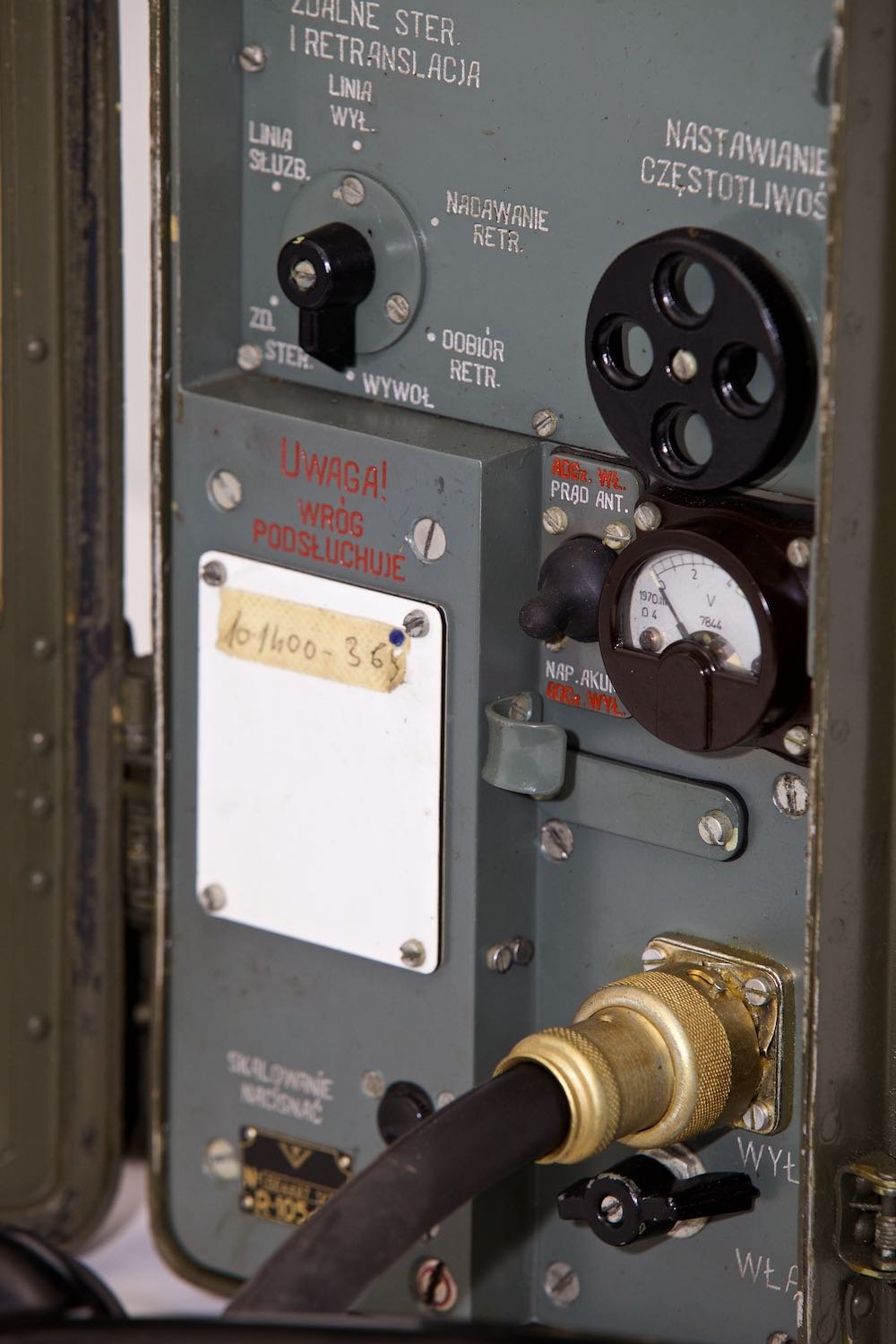

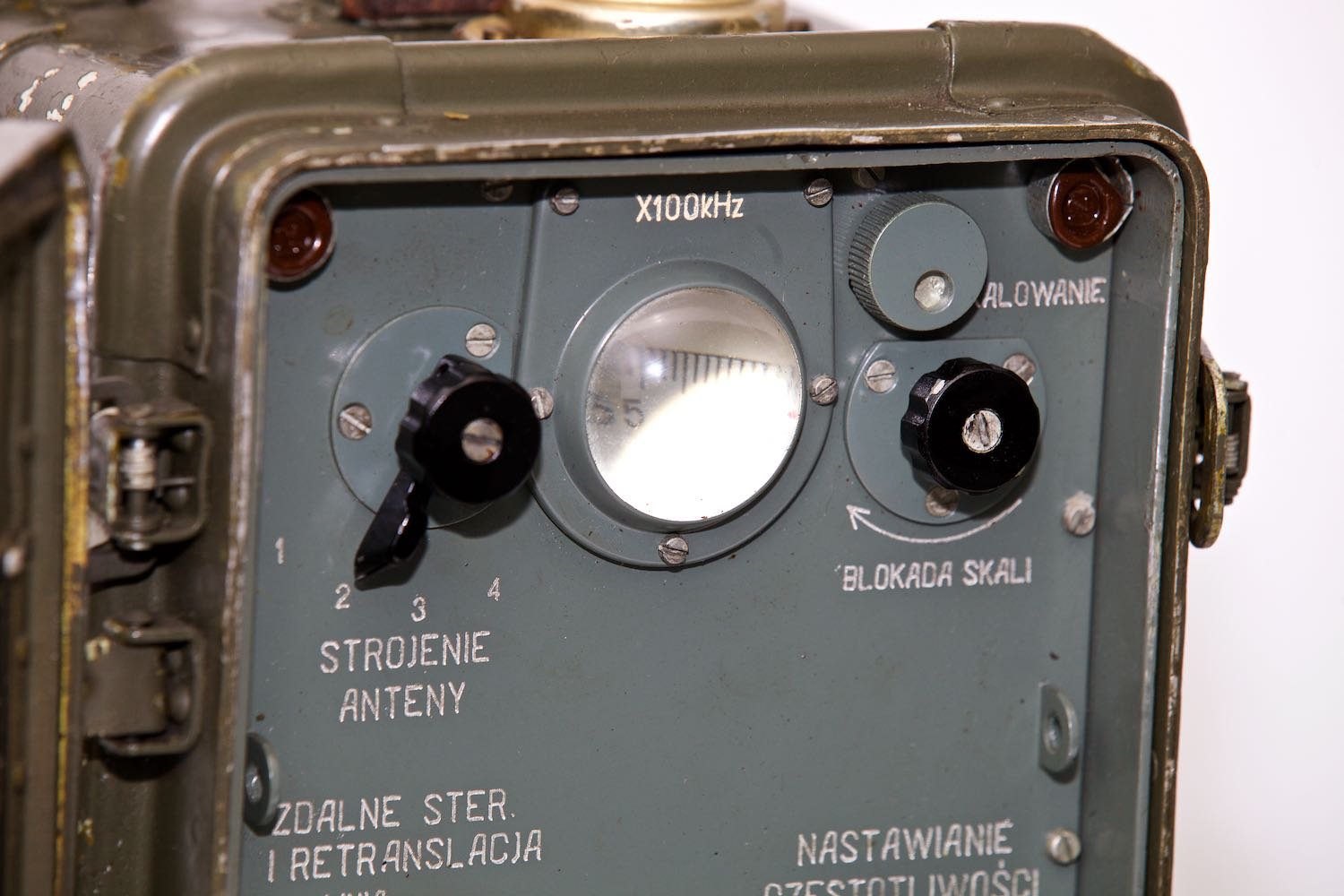

Frequency change fluent tuning, plot scale at 25 kHz
Work without seeking and tuning ensured by built-in crystal calibrator, high stability heterodyne and automatic tuning of a receiver to the correspondent frequency
Intermediate frequency 1312,5 kHz
Output power 1 W
Frequency deviation 5 kHz
Sensitivity no worse than 1,5 μV

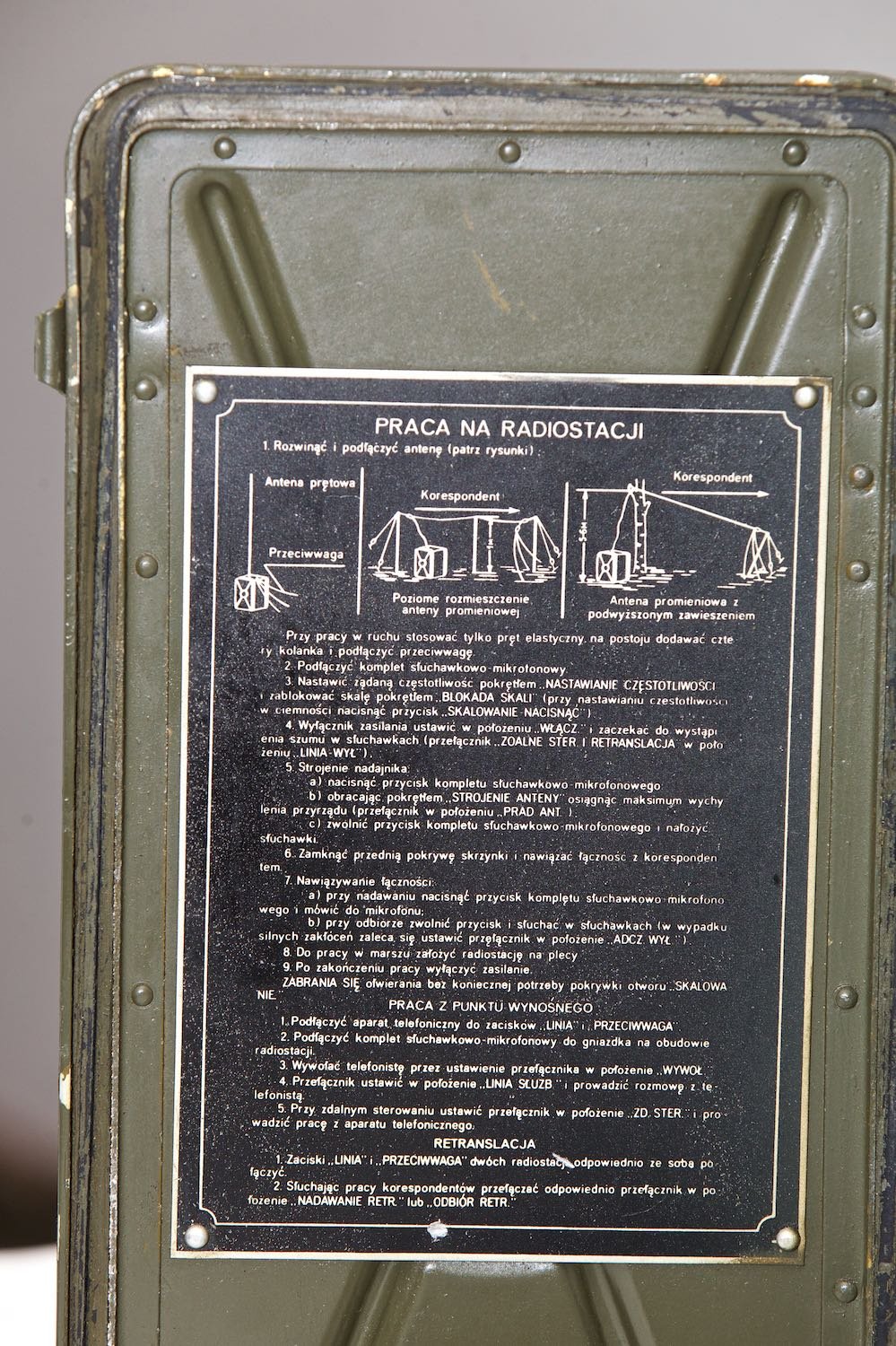

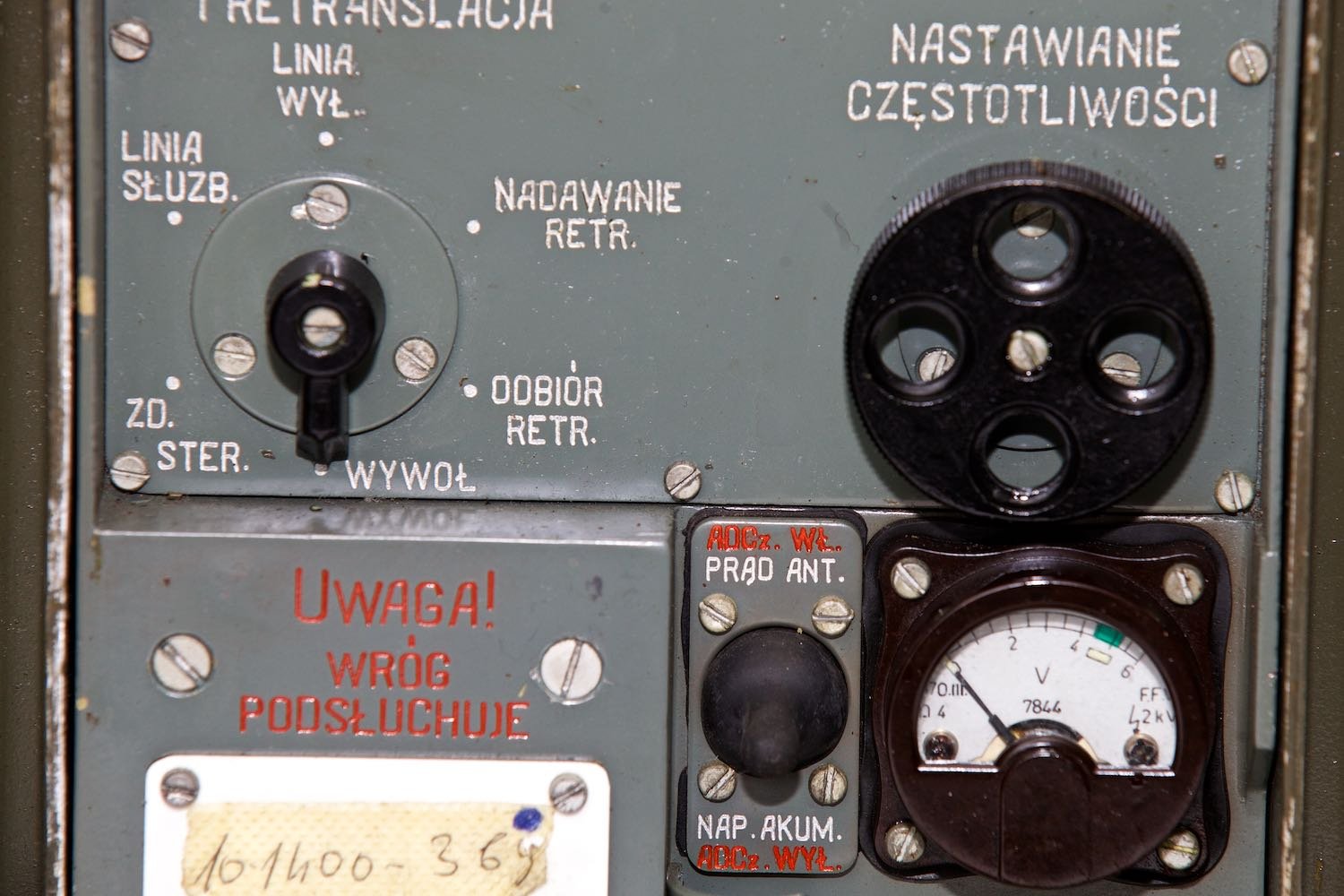

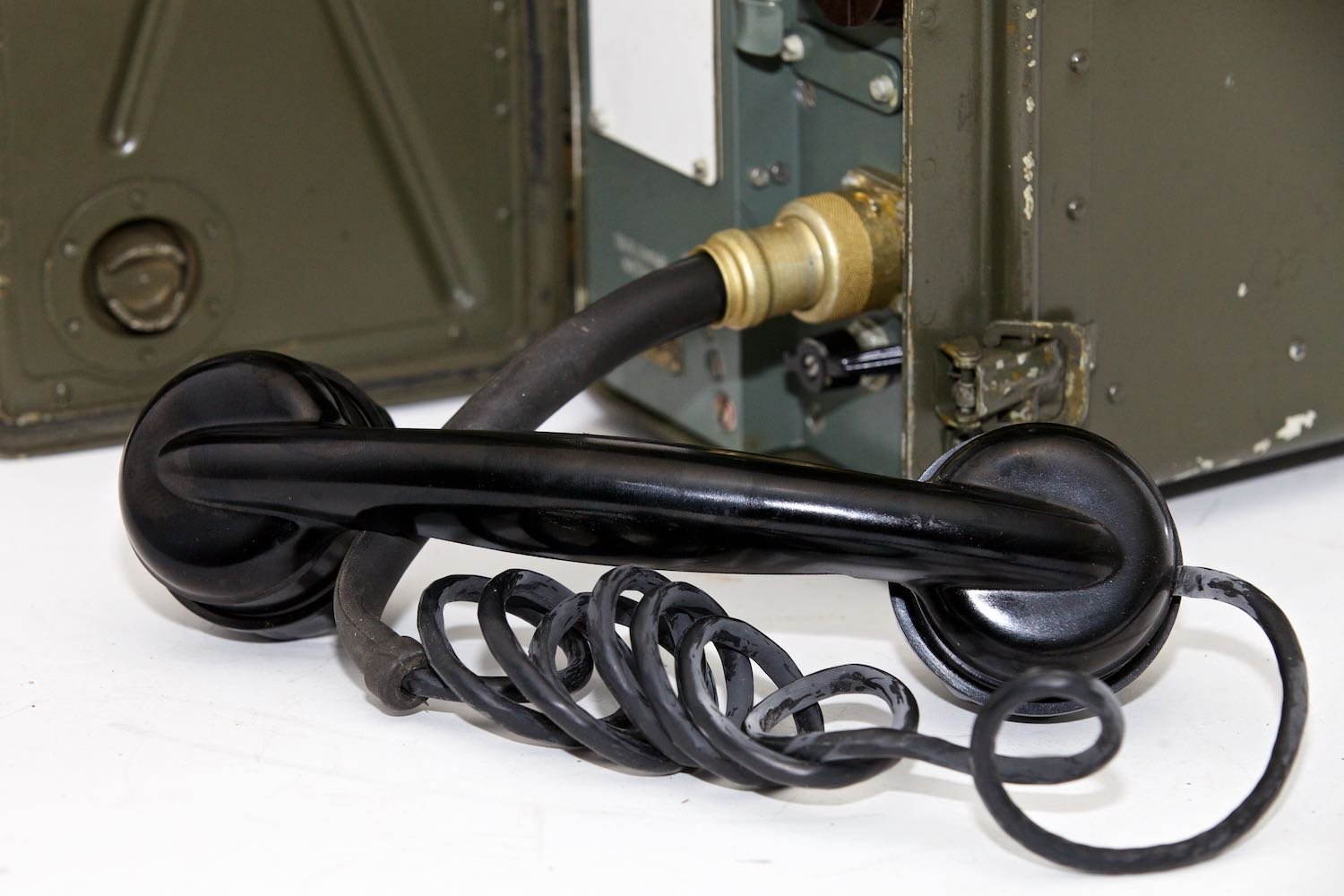

Control local and remote via the telephone line and the field telephone
Power internal battery 2 pcs. NiCd 2.4 V / 24 Ah
Work time approx. 12 hours with a time of receipt to the transmission 3:1
(on one set of batteries)
Weight approx. 21 kg (working set)
Immersion withstands immersion in water at 0.5 m for 10 minutes
(both lids are closed)
