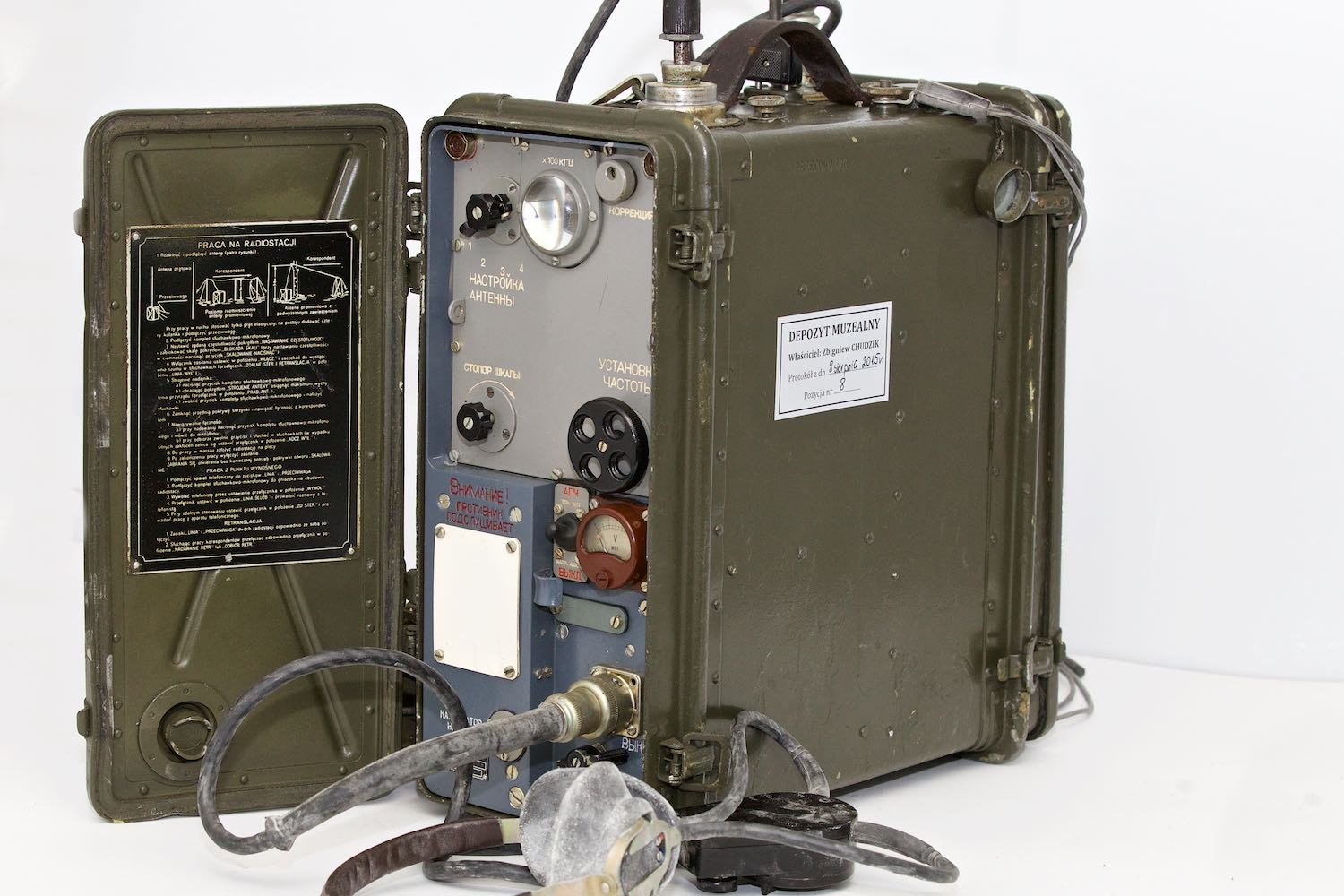

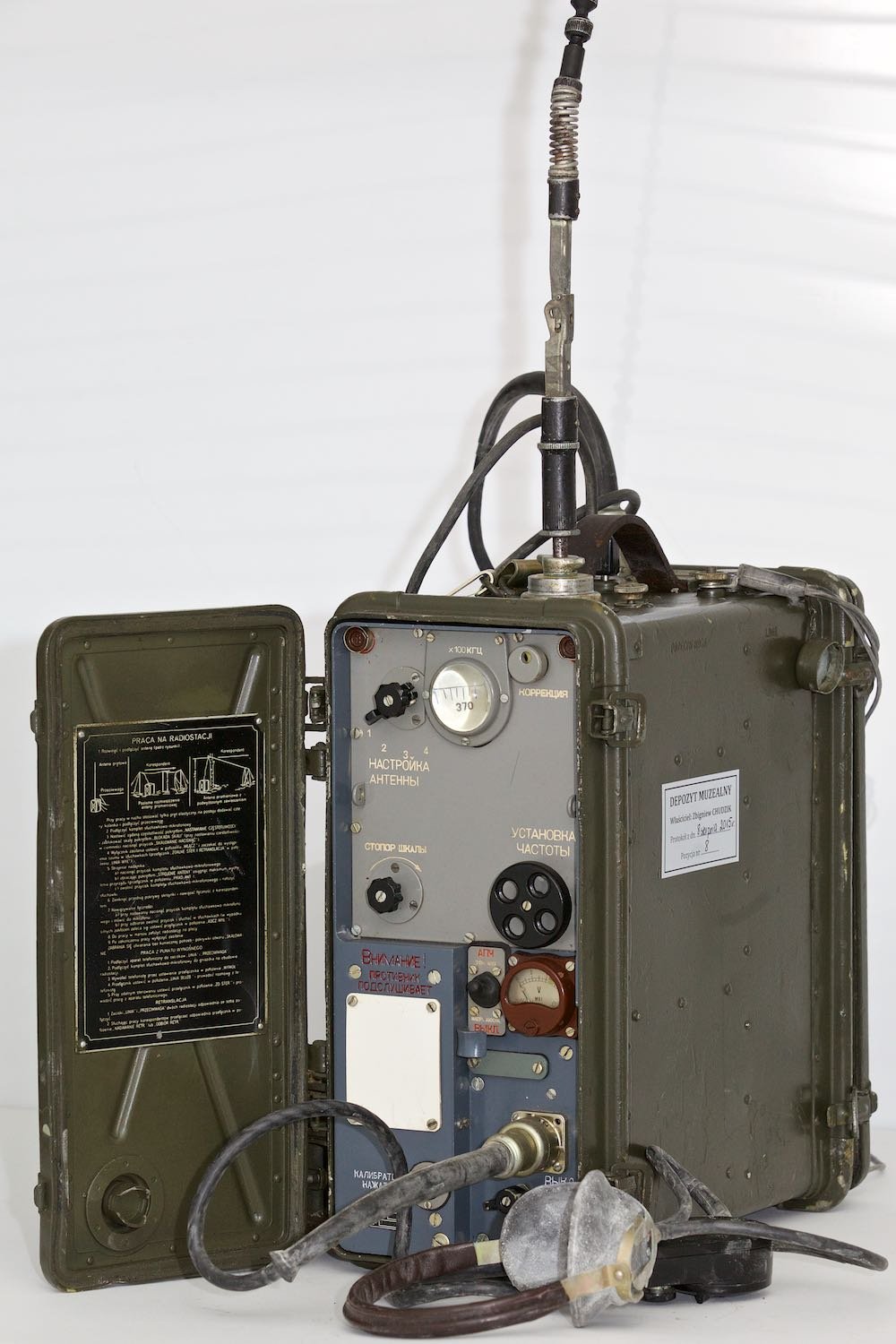

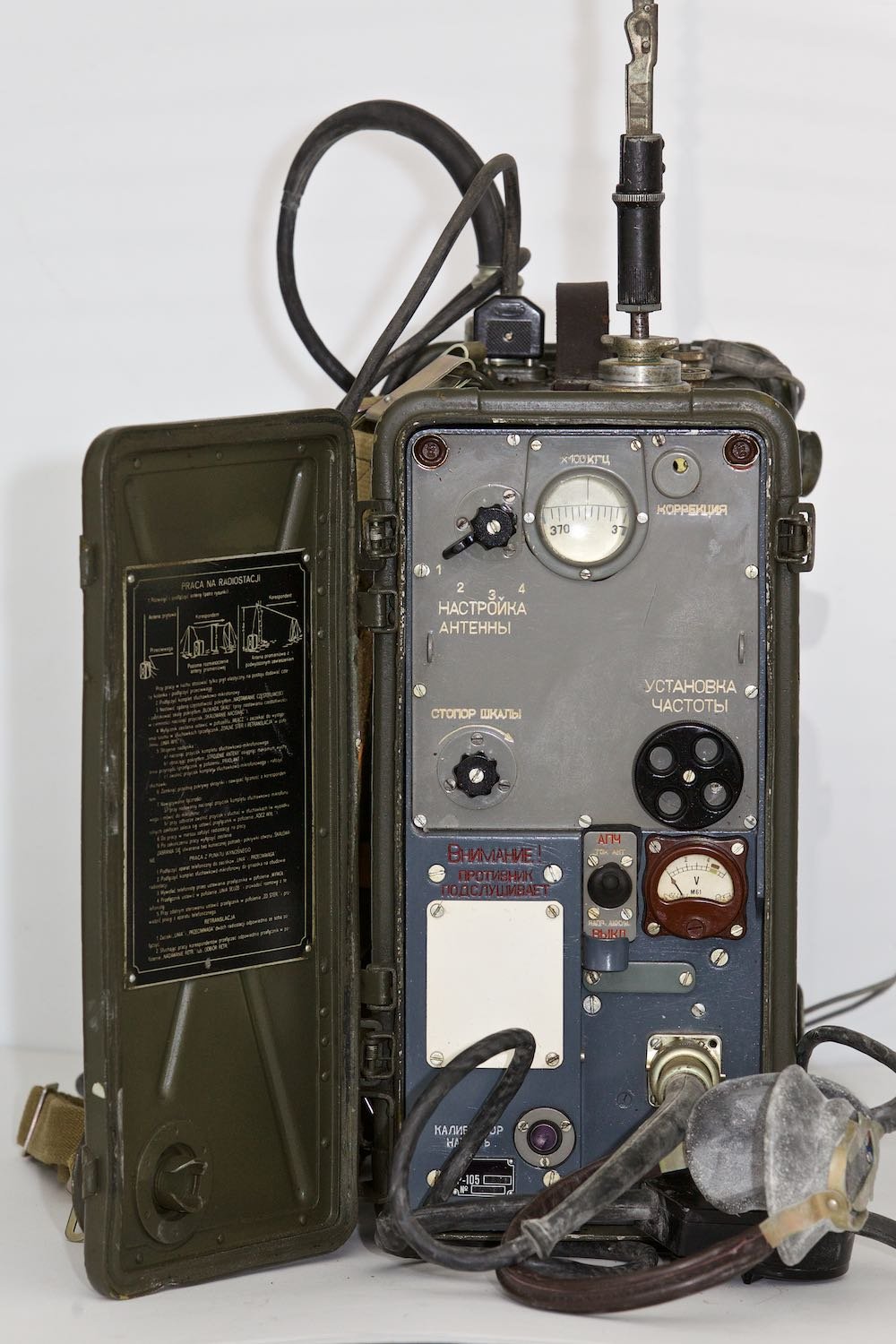

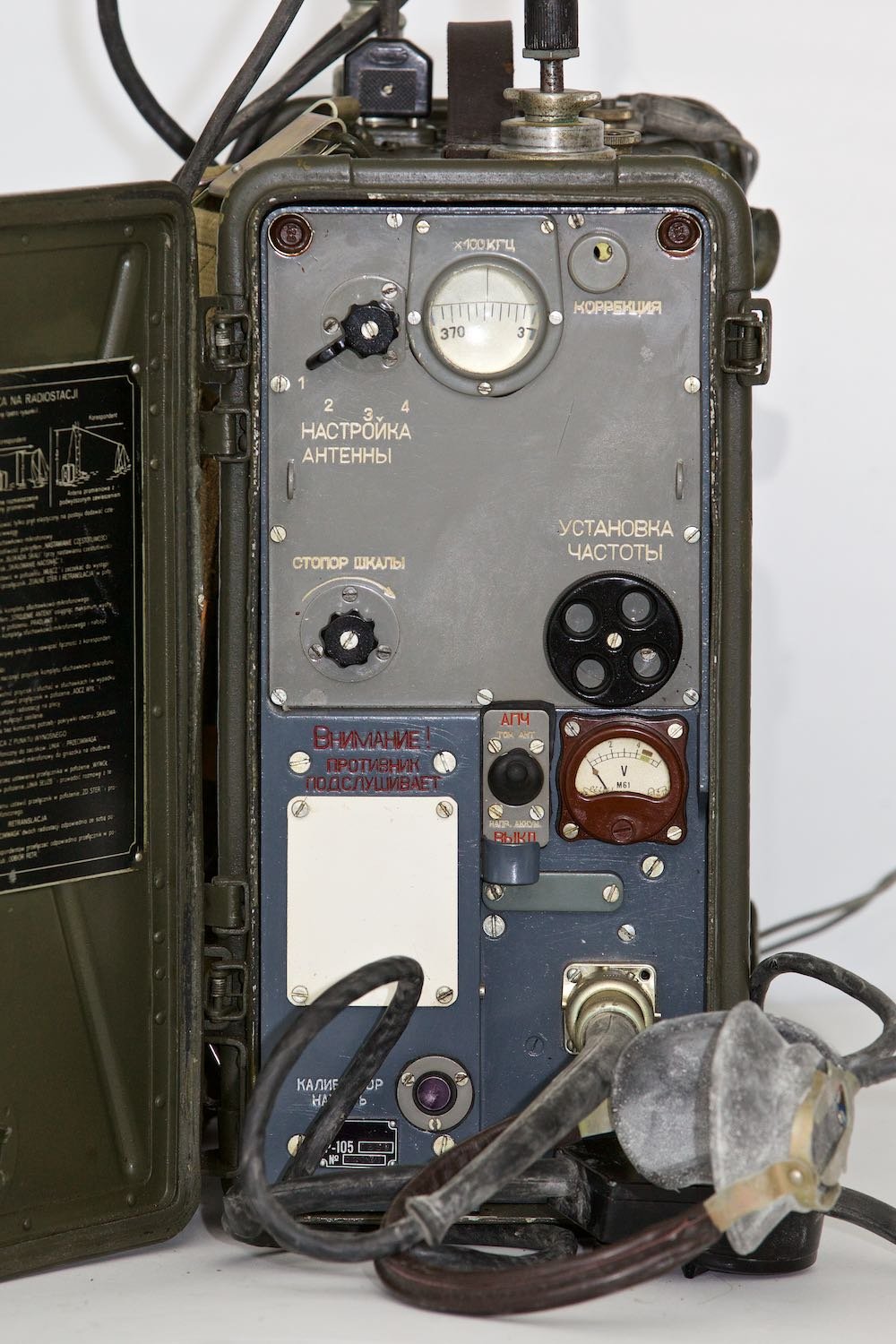

They have entered the equipment of the Polish Army in the late 50s as a successor technically obsolete radios R-106 and R-116. R-109 was intended for mechanized forces.
Frequency range | 21,5 - 28,5 MHz |
Modulation | frequency modulation (FM) |
Frequency change | fluent tuning, plot scale at 50 kHz |
Work | without seeking and tuning ensured by built-in crystal calibrator, high stability heterodyne and automatic tuning of a receiver to the correspondent frequency |
Intermediate frequency | 1312,5 kHz |
Output power | 1 W |
Frequency deviation | 8 kHz |
Sensitivity | no worse than 1,5 μV |
Control | local |
Power | internal battery 2 pcs. NiCd 2.4 V / 24 Ah |
Work time | approx. 12 hours with a time of receipt to the transmission 3:1 (on one set of batteries) |
Weight | approx. 22 kg (working set) |
Immersion | withstands immersion in water at 0.5 m for 10 minutes (both lids are closed) |
